Diamond Powder Granulator

CONELE specializes in the production of granulators for diamond micropowder and CBN superabrasives. We offer both dry and wet processes to address issues such as poor powder flowability and dust generation, while also improving bulk density and consistency.

Send email to us Download as PDF

Product Detail

Product Tags

Diamond Powder Granulator: Core Equipment for Improving Superabrasive Quality and Efficiency

CONELE develops high-performance diamond powder granulators specifically for the superabrasive industries, including diamond and cubic boron nitride (CBN). Through our advanced dry-process three-dimensional mixing and granulation technology, we help customers transform fine powders into dense granules with high sphericity, excellent fluidity, and uniform particle size. This significantly improves subsequent molding and sintering processes, maximizing product value.

Why is diamond powder granulated?

Diamond micropowder, when used directly in the production of grinding wheels, discs, cutting tools, and other products, presents numerous challenges:

Dust generation: This poses a health hazard to employees and results in raw material waste.

Poor flowability: This impacts the uniformity of automated forming feeds, resulting in inconsistent product density.

Low tap density: This results in numerous voids between the powders, impacting sintered compaction and ultimate strength.

Segregation: Mixed powders of varying particle sizes tend to separate during transportation, impacting product consistency.

CONELE’s granulation equipment perfectly addresses these challenges and is a key step toward achieving automated, high-quality production.

Core Principle of the Inclined Intensive Mixing Granulator

The operating principle of the inclined intense mixing granulator is based on the synergistic effect of an inclined mixing disc (barrel) and a specially designed rotor (agitator). It achieves uniform mixing of materials (including powders and liquid binders) in a short period of time through a combination of convective mixing, shear mixing, and diffusion mixing. Mechanical forces aggregate the materials into the desired granules.

Main Components of a Granulator

The inclined mixing disc (barrel): This is a container with a disc-shaped bottom, tilted at a fixed angle (typically 40°-60°) to the horizontal. This tilted design is key to creating complex material motion paths.

The rotor (agitator): Located at the bottom of the mixing disc, it is typically driven by a motor to rotate at high speed. Its specially designed shape (such as a plow or blade) is responsible for providing powerful shearing, stirring, and spreading of the material.

The scraper (sweeper): Attached to the rotor or separately, it adheres closely to the inner wall of the mixing disc. It continuously scrapes away material adhering to the disc walls and re-injects it into the main mixing area, preventing material from clumping and ensuring seamless mixing.

Drive System: Provides power for the rotor and mixing disc (on some models).

Liquid Addition System: Used to precisely and evenly apply liquid binder to the materials being mixed.

Granulator Models and Technical Specifications

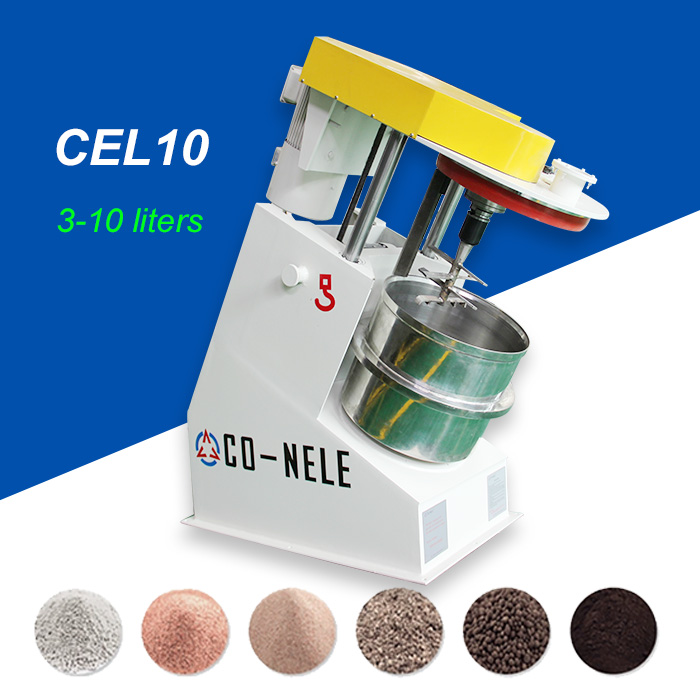

We offer a variety of granulator specifications to suit diverse needs, from laboratory research and development to large-scale production.

Experimental-grade small granulators and large-scale industrial granulators, granulator production lines, meet the functions of mixing, granulation, coating, heating, vacuum and cooling

Intensive Mixer	Granulation/L	Pelletizing disc	Discharging
CEL01	0.3-1	1	Manual unloading
CEL05	2-5	1	Manual unloading
CR02	2-5	1	Cylinder flip discharge
CR04	5-10	1	Cylinder flip discharge
CR05	12-25	1	Cylinder flip discharge
CR08	25-50	1	Cylinder flip discharge
CR09	50-100	1	Hydraulic center discharge
CRV09	75-150	1	Hydraulic center discharge
CR11	135-250	1	Hydraulic center discharge
CR15M	175-350	1	Hydraulic center discharge
CR15	250-500	1	Hydraulic center discharge
CRV15	300-600	1	Hydraulic center discharge
CRV19	375-750	1	Hydraulic center discharge
CR20	625-1250	1	Hydraulic center discharge
CR24	750-1500	1	Hydraulic center discharge
CRV24	100-2000	1	Hydraulic center discharge

Diamond Powder Granulator Core Advantages and Customer Value

Excellent finished granule quality

Sphericity >90% ensures unparalleled flowability.
Uniform particle size and a narrow distribution range ensure consistent product performance.
Moderate strength ensures transport without breakage and facilitates uniform decomposition during sintering.

Intelligent Control System

PLC touch screen control with one-touch operation and process parameter storage and recall.
Real-time monitoring of key data such as speed, time, and temperature ensures batch stability.

Material and Durability

All material contact parts are made of stainless steel or wear-resistant lining to prevent iron ion contamination and extend equipment life.

Comprehensive Solutions

At Conele, we don’t just sell equipment; we provide full-process support, from process exploration and parameter optimization to after-sales maintenance.

Granulator Applications

This equipment is widely used in all applications requiring granulation of superhard material powders:

Diamond/CBN grinding wheel manufacturing
Diamond saw blade and cutter head preparation
Granulating powder for polishing abrasive pastes
Geological drill bit and PCBN/PCD composite sheet substrate preparation

Frequently Asked Questions (FAQs) about Diamond Powder Granulators

Q What is the granular strength of diamond powder after granulation? Does it affect sintering?

A: We can precisely control granular strength by adjusting the binder type and dosage. The granule strength is sufficient for normal transportation and will decompose smoothly during the initial sintering process, without any negative impact on the final product.

Q What is the approximate yield from powder to granules?

A: Our equipment is designed to minimize material loss. Dry granulation typically achieves a yield of over 98%, while wet granulation, due to the drying process, has a yield of approximately 95%-97%.

Q Can you provide a pilot prototype for testing?

A: Yes. We have a professional laboratory (1L-50L capacity). Customers can provide raw materials for free granulation trials to verify the results firsthand.
