There are several types of refractory mixer equipment available in the market. Some common ones include paddle mixers, pan mixers, and planetary mixers. Each type has its own unique features and advantages. Paddle mixers use rotating paddles to mix the materials, while pan mixers have a rotating pan to achieve thorough mixing. Planetary mixers offer a more complex mixing action with multiple agitators.

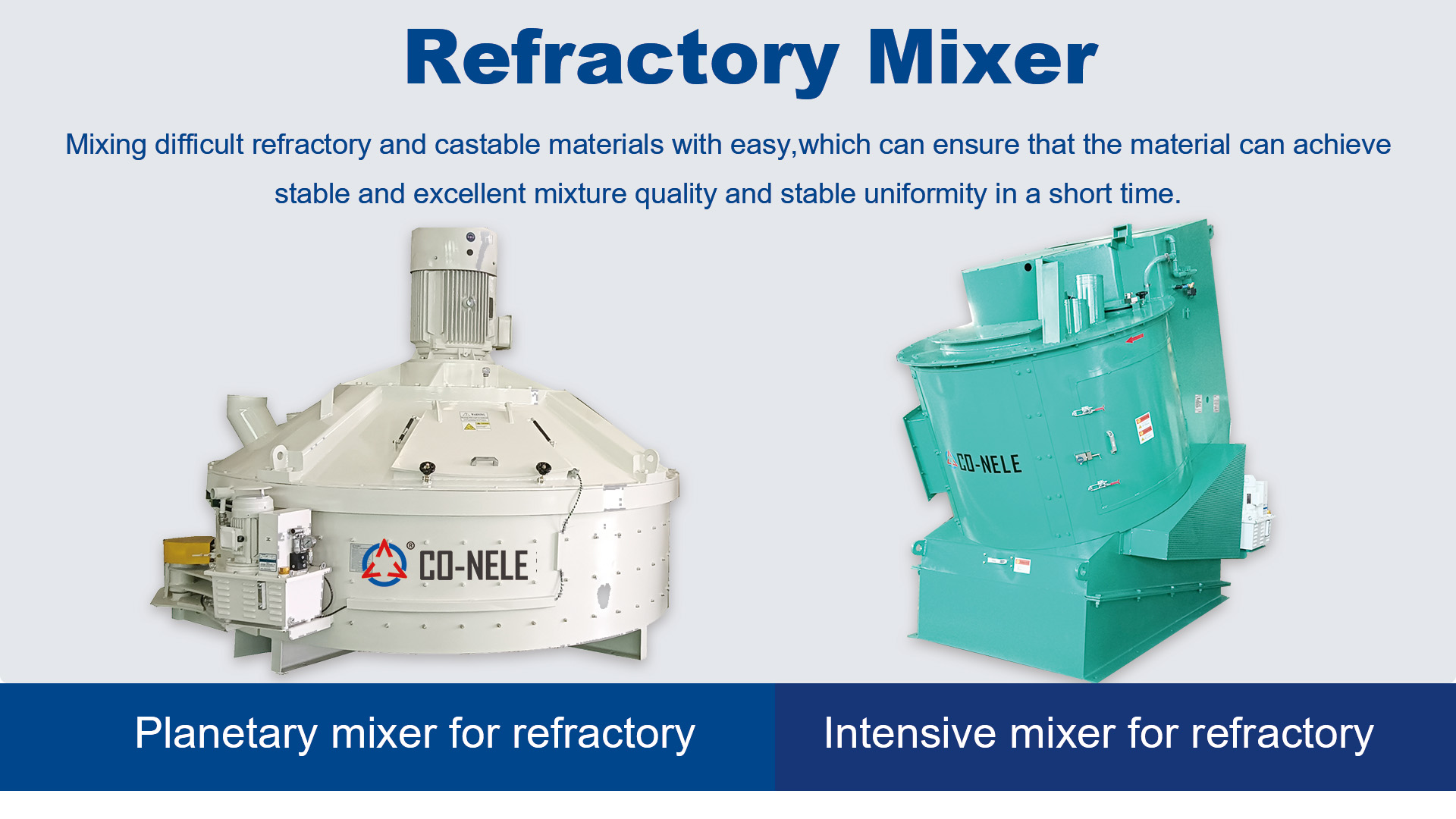

Comparison between planetary refractory mixers and high-intensity mixers for refractory materials
| Characteristics |
Planetary Mixer for Refractories |
Intensive Mixers for Refractories |
| Fundamental Principle |
The stirring arms rotate around the main axis, forming a complex planetary motion trajectory without dead angles. |
The high-speed central rotor rotates in the opposite direction to the cylinder, creating high-intensity countercurrent shear and convection. |
| Mixing Characteristics |
High homogeneity, good macroscopic and microscopic uniformity; relatively gentle process, with minimal damage to particles. |
Strong shearing force, with kneading and crushing effects, promoting material granulation and fiber dispersion. |
| Advantages |
Mixing without dead angles, good sealing, compact structure, relatively convenient maintenance, high cost-effectiveness. |
Extremely high mixing force, large capacity to handle high-viscosity materials requiring kneading, high efficiency. |
| Applicable Materials |
Various unshaped refractory materials: refractory concretes, gunning mixes, refractory mortars, ramming mixes, etc. |
Brick materials requiring granulation or strong bonding: such as magnesia-carbon bricks, alumina-magnesia-carbon brick materials, materials containing fiber or tar binders. |
| Typical Scenarios |

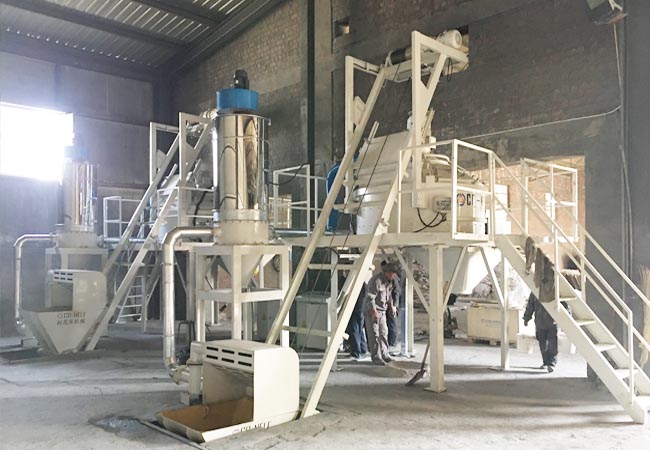

Production lines for castable refractories and dosing/mixing processes in refractory material factories. |
Production lines for special refractory bricks (such as ladle lining bricks) and pre-treatment of raw materials requiring granulation. |
Function and Working Principle:
• It works on the principle of planetary motion. The mixing tools rotate around the mixer axis while simultaneously rotating on their own axes. This dual motion ensures thorough and uniform mixing of concrete ingredients.
• Capable of handling a wide range of concrete mixtures, from low to high slump concretes.
Planetary Mixer for Refractory Advantages:
• High Mixing Efficiency: Ensures that all ingredients are evenly distributed in a short time, resulting in high-quality concrete.
• Durability: Built with robust materials to withstand the harsh conditions of concrete mixing.
• Versatility: Can be used for different types of projects, including large-scale construction sites and small batch productions.
Function and Purpose
This Planetary Refractory Mixer equipment is designed to thoroughly mix various refractory materials to achieve a homogeneous blend. It plays a vital role in ensuring the quality and performance of the final refractory product. By evenly distributing different components such as refractory aggregates, binders, and additives, the mixer helps in creating a consistent material that can withstand high temperatures and harsh environments.
- High mixing efficiency: Refractory mixer equipment is designed to ensure quick and efficient mixing, reducing production time.
- Durability: Made from high-quality materials, these mixers are built to withstand the abrasive nature of refractory materials and long-term use.
- Adjustable settings: Many models allow for adjustment of mixing speed, time, and intensity to meet different production requirements.
- Easy maintenance: With proper design and construction, refractory mixers are relatively easy to maintain, reducing downtime and maintenance costs.
Refractory mixer equipment is widely used in various industries where high-temperature resistance is required. This includes steelmaking, cement production, glass manufacturing, and power generation. The mixed refractory materials are used to line furnaces, kilns, and other high-temperature equipment to protect them from heat and wear.
CMP Planetary Rrefractory Mixer Specifications (Part 1)
| Type |
CMP50 |
CMP100 |
CMP150 |
CMP250 |
CMP330 |
CMP500 |
CMP750 |
CMP1000 |
| Output capacity(L) |
50 |
100 |
150 |
250 |
330 |
500 |
750 |
1000 |
| Input capacity(L) |
75 |
150 |
225 |
375 |
500 |
750 |
1125 |
1500 |
| Output weight(Kg) |
120 |
240 |
360 |
600 |
800 |
1200 |
1800 |
2400 |
| Mixing power(Kw) |
3 |
5.5 |
7.5 |
11 |
15 |
18.5 |
30 |
37 |
| Dischar ging power(Kw) |
Pneumatic discharge(optional hydraulic) |
| Planet/mixing arm |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
- |
- |
- |
| Paddle(nr) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| DIscharging paddle(nr) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| Weight(Kw) |
700 |
1100 |
1300 |
1500 |
2000 |
2400 |
3900 |
6200 |
| Ligting power(Kw) |
- |
2.2 |
2.2 |
3 |
4 |
4 |
7.5 |
11 |
| Type |
CMP1250 |
CMP1500 |
CMP2000 |
CMP2500 |
CMP3000 |
CMP4000 |
CMP4500 |
CMP5000 |
| Output capacity(L) |
1250 |
1500 |
2000 |
2500 |
3000 |
4000 |
4500 |
5000 |
| Input capacity(L) |
1875 |
2250 |
3000 |
3750 |
4500 |
6000 |
6750 |
7500 |
| Output weight(Kg) |
3000 |
3600 |
4800 |
6000 |
7200 |
9600 |
10800 |
12000 |
| Mixing power(Kw) |
45 |
55 |
75 |
90 |
110 |
160 |
200 |
250 |
| Dischar ging power(Kw) |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
4 |
| Planet/mixing arm |
2/4 |
2/4 |
3/6 |
3/6 |
3/9 |
3/9 |
3/9 |
3/9 |
| Paddle(nr) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| DIscharging paddle(nr) |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
| Weight(Kw) |
6700 |
7700 |
9500 |
11000 |
12000 |
16500 |
17500 |
18500 |
| Ligting power(Kw) |
15 |
15 |
22 |
30 |
37 |
- |
- |
- |
