CMP750 Planetary Mixer | UHPC Precast concrete batching plant

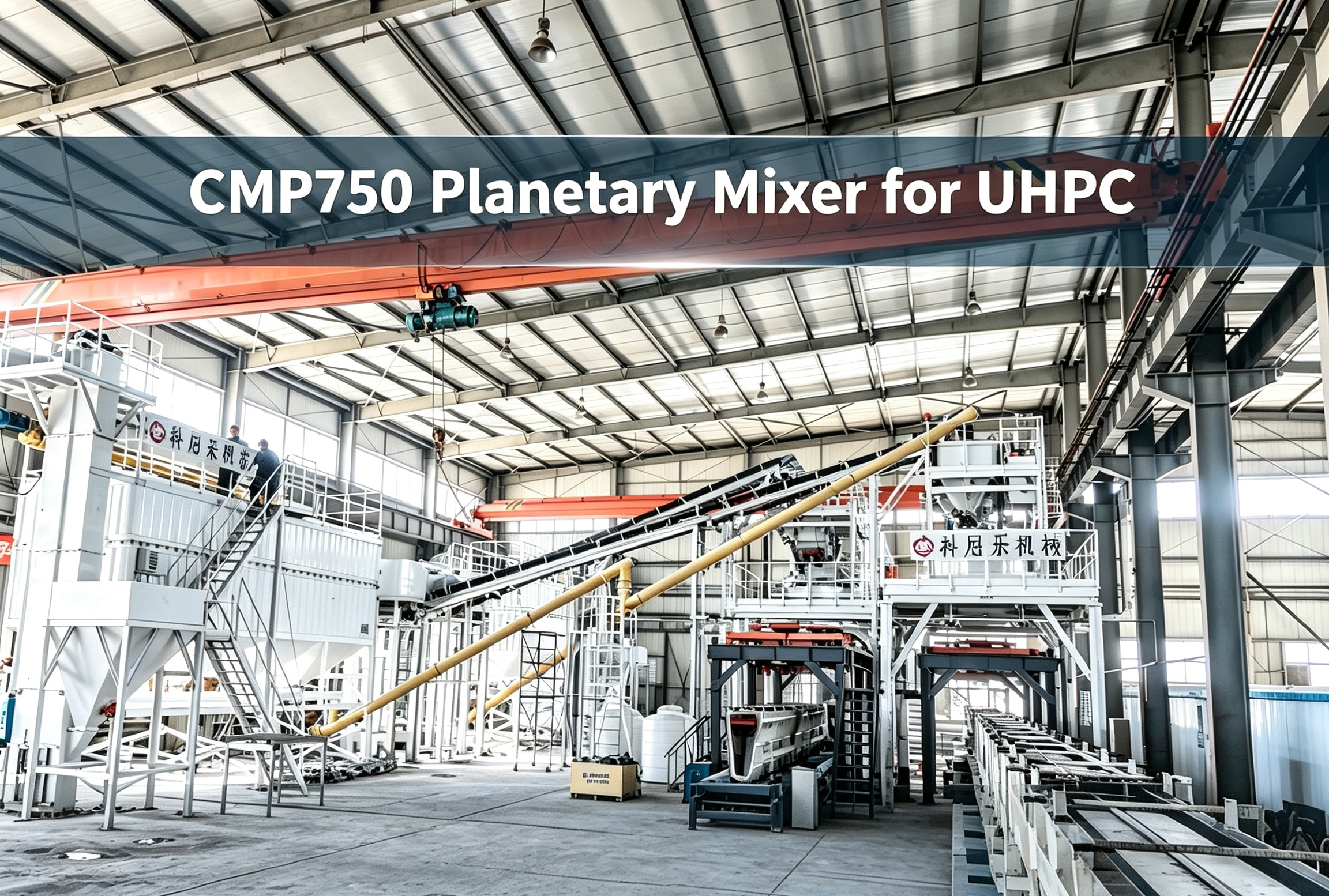

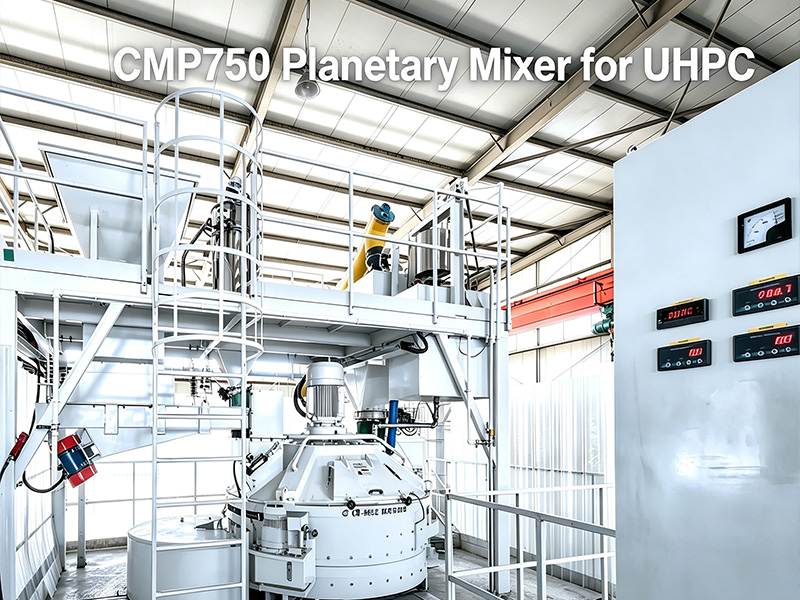

A newly completed intelligent UHPC precast concrete batching plant, equipped with two sets of CMP750 planetary mixers, has been officially commissioned for mass production of high-performance UHPC highway guardrails. Each CMP750 mixer features an effective capacity of 0.75 cubic meters, and the dual-mixer configuration greatly upgrades production efficiency while maintaining stable and reliable mixing quality for highway safety components.

Industry Challenges

UHPC highway guardrails require ultra-high strength, excellent impact resistance and structural durability, which place strict demands on material uniformity and steel fiber dispersion. Traditional mixing equipment often suffers from fiber agglomeration, uneven distribution and material segregation, leading to inconsistent product performance and hidden safety hazards in highway engineering.

The Solution

To completely solve this industry pain point, the production line is specially equipped with an automatic steel fiber metering device and full-automatic PLC integrated control, covering automatic batching, precise feeding, fiber metering, intensive mixing and casting molding.

The dual 0.75m³ mixer layout balances high output and stable quality, perfectly meeting the standardized and large-scale production requirements of UHPC highway guardrails. This optimized UHPC batching plant provides a professional and efficient equipment solution for modern highway infrastructure construction.

CMP750 Planetary Mixer Core Technical Parameters

•
Effective Output Capacity: 0.75m³ (750L) per batch

•
Feeding Capacity: 1125L per batch

•
Single Batch Output Weight: Approx. 1800kg

•
Rated Mixing Power: 30kW

•
Mixing Structure: 3D counter-current planetary system (3 arms + 1 scraper)

•
Equipment Weight: 3800kg per unit

Supporting Configuration & Materials:

Matched with independent automatic steel fiber metering device, realizing precise quantitative feeding.
Applicable Materials: Ultra-high-performance concrete with steel fiber, micro-powder and silica fume, specially optimized for UHPC highway guardrail production.

Dual-unit CMP750 configuration effectively doubles continuous production capacity, while the professional planetary mixing structure ensures uniform steel fiber dispersion and stable UHPC material quality, fully complying with the high-strength and durability standards of highway safety guardrail projects.
