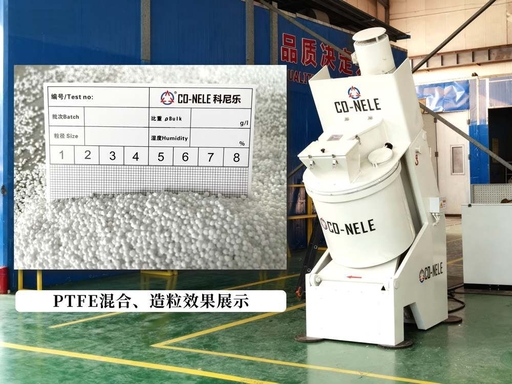

The CO-NELE CR Intensive Mixer is the core equipment tailored for PTFE granulation, integrating high-shear mixing and precision granulation in one unit. As a flagship model from CO-NELE (a 20-year leading manufacturer and national high-tech enterprise), it addresses PTFE’s key pain points—static buildup, poor fluidity, and feeding bridging—delivering uniform, dense spherical granules for molding, extrusion, and sintering.
1
Core Technology & Working Principle
Powered by CO-NELE’s intensive countercurrent mixing principle, the CR mixer uses a slow-rotating inclined drum and a high-speed reverse rotor to create a 3D turbulent field. This achieves:
1-Minute High-Uniformity Mixing (≥98%)
Eliminates PTFE agglomeration and static electricity.
3-Minute Precision Granulation
Shears mixed powder into round, burr-free granules (0.5–5mm adjustable).
Sealed, Dust-Free Operation
Prevents contamination and material waste.
2
Key System Configuration
■
Sealed Cavity
304 stainless steel, anti-static, residue-free, and easy to clean.
■
Wear-Resistant Mixing Tools
CO-NELE-selected alloy, frequency-controlled (500–1500r/min) for diverse PTFE formulas.
■
Heating/Cooling Jacket
Ambient to 80°C adjustable, optimizes PTFE fluidity for consistent granulation.
■
PLC Touchscreen Control
Precisely sets parameters (speed, time, temperature) with memory and fault alarm functions.
■
Safety Protection
Full enclosure, emergency stop, and static grounding; complies with ISO9001 and CE standards.
3
Core Technical Parameters
| Parameter |
Specification |
| Model |
CR-500 / 1000 / 2000 (lab to industrial) |
| Capacity |
50–500kg/h |
| Particle Size |
0.5–5mm |
| Mixing Uniformity |
≥98% |
| Motor Power |
5.5–22kW |
| Noise |
≤75dB |
PTFE-Specific
Solves static, bridging, and poor fluidity; ensures stable granule quality.
High Efficiency
4–5x faster than traditional equipment; saves space with integrated mixing/granulation.
Wide Adaptability
Handles pure PTFE and filled grades (graphite, carbon fiber, glass fiber).
Eco-Friendly & Safe
Sealed design eliminates dust; 304 stainless steel meets food/pharmaceutical standards.
Low Maintenance
Durable components reduce upkeep; CO-NELE provides 1-year warranty and lifelong technical support.
Widely used in the following industries for PTFE raw material processing:
Chemical (Seals, Valves)
Mechanical (Bearings)
Electronic (Insulators)
Aerospace
Food & Pharmaceutical
New Energy
CO-NELE CR Intensive Mixer: The ultimate solution for high-quality PTFE granulation — efficient, stable, and reliable.
