  • 750L Adsorbent Granulation Machine

750L Adsorbent Granulation Machine

750L intensive mixer for adsorbent granulation, 1.5t/h output, 8‑min batch cycle, 0.6‑1.5mm pellets, 32N compressive strength, water‑insoluble, ideal for industrial adsorbent mass production.


Download as PDF

Product Detail

Product Tags

CO-NELE 750L intensive mixer is specially designed for batch granulation of adsorbent powder, delivering stable industrial‑scale production with high efficiency and consistent particle quality.

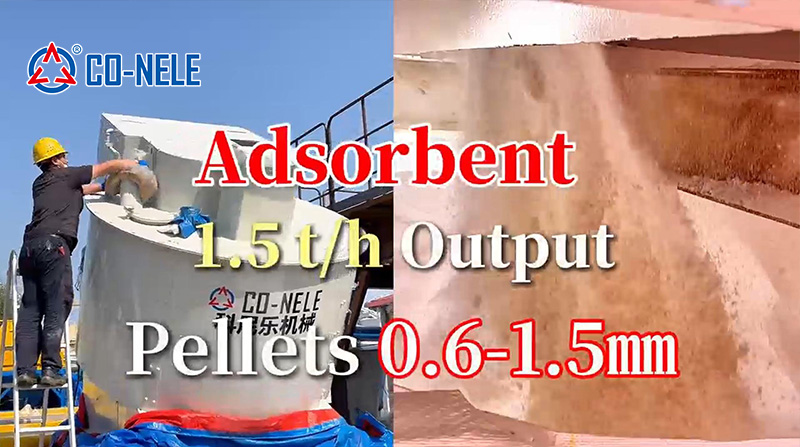

1.5 T Adsorbent Granulation

750L Adsorbent Granulation Machine Key Production Parameters

Effective Volume
750L
Hourly Output
1.5 tons/h
Single Batch Cycle
8 min
Feeding to discharging
Final Particle Size
0.6–1.5 mm
Spherical pellets
Compressive Strength
32N
Single‑pellet
Water Resistance
Insoluble in water
No collapse after immersion
Feeding Capacity
200 kg
Per batch

Intensive Mixer for Adsorbent GranulationWorking Principle & Granulation Process

750L Adsorbent Granulation Machine adopting counter‑current high‑speed mixing and side cutter technology, the 750L intensive mixer realizes semi‑dry spray granulation.

1
Feeding (1 min)
CR19 adsorbent powder is loaded into the mixing tank.
2
Pre‑mixing (2 min)
Uniform dispersion of raw powder.
3
Spheronization (4 min)
Binder sprayed evenly for dense spherical granulation (0.6–1.5 mm).
4
Discharging (1 min)
Quick tilting discharge with no material residue.

Adsorbent GranulatorAdvantages for Adsorbent Granulation

High‑strength Pellet Forming
Dense internal structure ensures stable 32N compressive strength and excellent water resistance.
Precise Particle Size Control
Variable‑frequency speed regulation keeps pellets concentrated at 0.6–1.5 mm with minimal fine powder.
High Efficiency & Stable Output
8‑minute fast batch cycle supports continuous 1.5 tons/h industrial production.
Dust‑free Closed Production
Improved raw material utilization rate and clean working environment.
Consistent Batch Quality
Standardized time, speed and binder dosage for uniform finished products.

Applications

Widely used in mass production of adsorbents for wastewater treatment, waste gas VOCs removal, heavy metal adsorption, catalyst carriers and chemical separation industries.
