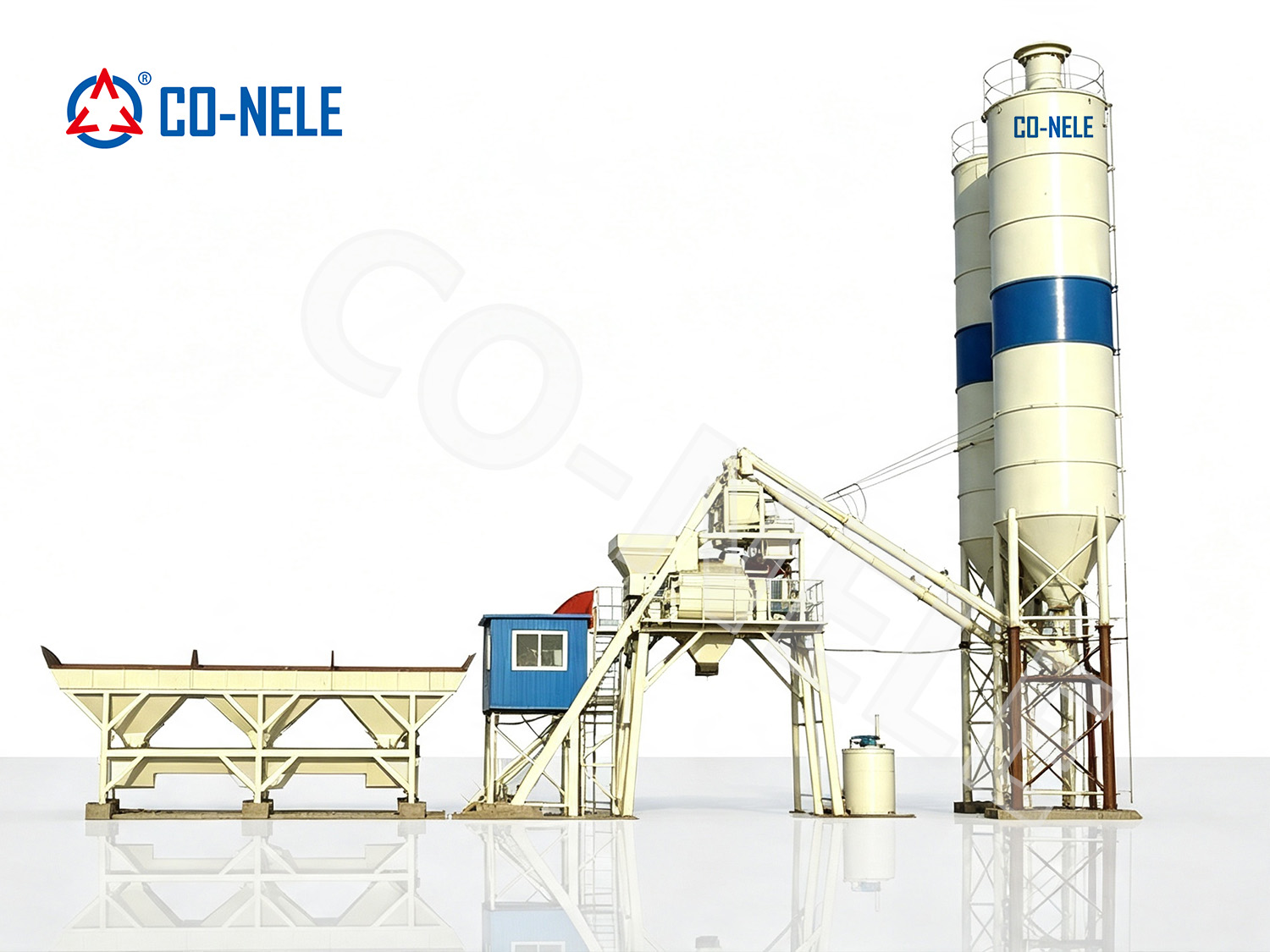

50m³/h Compact Concrete Batching Plant

The 50m³/h compact concrete batching plant (HZS50) is a modular, integrated, space-saving automatic concrete mixing system independently designed and manufactured by CO-NELE. It is one of the most cost-effective small concrete batching plants for medium and small construction projects. This compact concrete plant delivers a theoretical productivity of 50 cubic meters per hour and a practical stable output of 40-45m³/h, perfectly matching project demands with limited construction area and moderate concrete consumption.

Different from traditional belt conveyor type concrete mixing stations, the HZS50 compact concrete batching plant adopts a skip hoist feeding structure, which eliminates the need for long-distance belt conveying systems. It achieves ultra-small floor space, fast on-site installation, convenient disassembly and transportation, and lower overall project investment. This small concrete batching plant can produce ordinary ready-mix concrete, semi-dry concrete, rigid concrete, and road-specific concrete, widely used in municipal construction, rural road renovation, small bridge engineering, water conservancy projects, precast component production, and temporary site concrete supply.

Core Mixing Unit | CHS1000 Twin-shaft Forced Concrete Mixer

Equipped with the mature CO-NELE CHS1000 twin-shaft forced concrete mixer, the core mixing host provides powerful and homogeneous mixing performance.

• Single batch discharge capacity: 1m³
• Mixing motor power: 37kW
• Maximum feeding aggregate size: 80mm
• Standard mixing cycle: 60-72 seconds per batch

Aggregate Batching System | PLD1600 High-precision Batching Machine

Supports 3 to 4 aggregate bins. Realizes independent quantitative weighing and automatic batching of sand and gravel.

• Total hopper storage volume: 13m³
• Aggregate weighing range: 0-3000kg
• Aggregate weighing accuracy: ±2%

Powder Conveying & Weighing System

LSY250 professional screw conveyor for dust-free conveying of cement, fly ash and mineral powder.

• Cement weighing range: 0-600kg, accuracy ±1%
• Optional 50t / 80t / 100t vertical cement silo
• Closed conveying design, eco-friendly

Water & Liquid Admixture Weighing System

Independent automatic weighing modules for accurate quantitative proportioning, eliminating human errors.

• Water weighing range: 0-400kg, accuracy ±1%
• Admixture weighing range: 0-50kg, accuracy ±1%

Intelligent Automatic Control System

Industrial computer control with automatic/semi-auto modes. Supports formula storage and data printing.

• One-key startup, unmanned production
• Simple human-computer interaction

Pneumatic Drive & Auxiliary Safety System

Standard air compressor and pneumatic discharge door ensure sensitive and stable operation.

• Minimal material residue
• Standardized maintenance platforms

1. Compact Modular Structure & Small Footprint

Designed with skip hoist lifting structure. Ideal for narrow urban sites and mountainous construction areas.

2. Fast Installation & Easy Relocation

Bolted modular connection with pre-wired circuits. Short installation cycle and easy to transport.

3. High-precision Weighing & Reliable Concrete Quality

Independent high-precision weighing for all materials ensures compliance with international standards.

4. Low Operation & Maintenance Cost

Optimized structure and wear-resistant accessories reduce failure rates and maintenance costs.

5. Eco-friendly Design & Customized Solutions

Optional dust collectors and wastewater recycling meet strict global environmental requirements.

6. Versatile Production & Wide Application

Produces multiple types of concrete: ready-mix, pavement, precast, and special engineering concrete.
