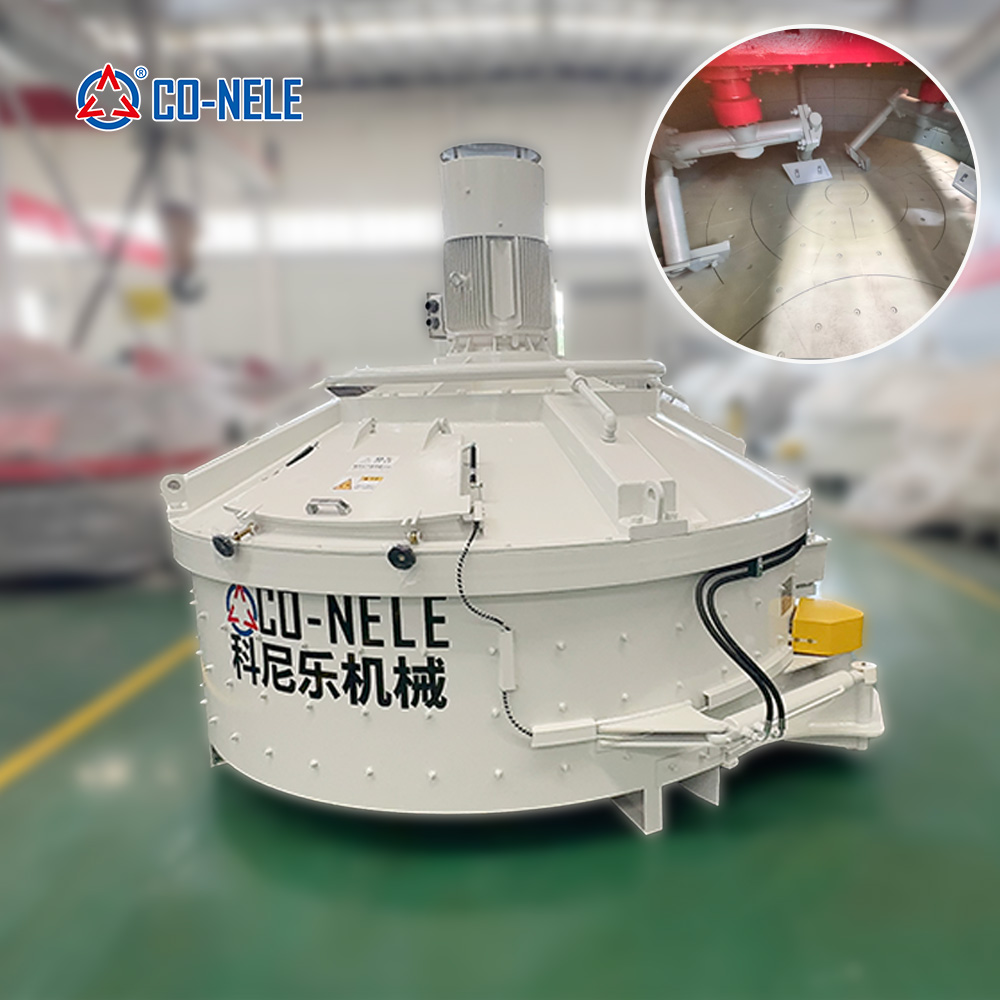

Planetary Concrete Mixer Type CMP Featured Image





Planetary Concrete Mixer Type CMP

CO-NELE planetary mixer is widely used in PRECAST concrete, high performance concrete, refractory materials, ceramics and other industries. For materials with high mixing difficulty, the advantages of co-nele planetary mixer are obvious.

CO-NELE is the manufacturer of planetary concrete mixer and has own 30000m2 factory .Mixer is applied in precast concrete, low slump concrete, dry concrete, plastic fiber concrete ,Refractory castable ，UHPC concrete，Glass ，ceramics.

Send email to us Download as PDF

Product Detail

Product Tags

As a high-performance mixing equipment widely used in construction, precast, and refractory industries, the planetary concrete mixer (also known as planetary centrifugal mixer) stands out for its unique vertical shaft planetary mixing principle, realizing 360° dead-angle-free mixing and stable output of high-quality concrete. Different from traditional JS concrete mixers, our planetary concrete mixer integrates efficiency, durability, and versatility, making it the preferred choice for large-scale construction projects, precast concrete plants, and high-performance concrete production worldwide.

Working Principle of Planetary Concrete Mixer

The core advantage of the planetary concrete mixer lies in its advanced planetary mixing mechanism: the mixing device is driven by an overhead motor to rotate around the central vertical shaft (revolution), while the mixing arms and blades rotate at high speed around their own axis (rotation) — the superposition of revolution and rotation forms a complex and efficient mixing trajectory. This unique motion mode enables materials to move horizontally and vertically at the same time, strongly shearing and turning over, which can effectively break cement particle agglomeration and achieve microscopically uniform mixing.

Equipped with a Planetary gearing system, the rotation direction of the mixing stars is opposite to the revolution direction, and each mixing star rotates in a different direction, further enhancing the convection and circulation of materials, shortening the mixing time by 15~20% compared with traditional planetary mixers, and reducing energy consumption significantly. Every 4 revolutions (about 5 seconds), the mixing blades can fully cover the bottom of the mixing tank, ensuring no dead corners and uniform mixing of all materials.

Core Advantages of Our Planetary Concrete Mixer

1. High Uniformity & Mixing Quality

The planetary mixing trajectory covers the entire mixing tank, cooperating with unique blade-type blades and side scrapers, which can fully mix various materials (including dry materials, plastic materials, and high-viscosity materials) uniformly. The mixed concrete has excellent workability and strength, which is especially suitable for the production of high-performance concrete (HPC), UHPC, steel fiber reinforced concrete, colored concrete, and foam concrete.

2. High Efficiency & Energy Saving

Adopting a high-torque, low-noise planetary reducer and optimized drive system, the transmission efficiency is high, and the energy consumption is 15~20% lower than that of traditional mixers under the same mixing capacity. The mixing time is short (5~60 seconds adjustable according to material type), and the output efficiency is significantly higher than that of ordinary mixers, which can meet the high-demand production of large-scale construction sites and precast plants.

3. Durable & Low Maintenance Cost

The mixing arms, blades, and mixing tank lining are made of high-chromium alloy cast iron, which has strong wear resistance and high interchangeability, effectively extending the service life of wearing parts. The whole machine has a simple structure, a low failure rate, and is equipped with a convenient maintenance cover and inspection hatch, which simplifies daily maintenance and reduces downtime and maintenance costs.

4. Versatile & Wide Application

Beyond mixing all types of concrete, our planetary concrete mixer can also be used to mix refractory materials, glass, ceramics, fertilizers, dry mortar, and other materials, widely applicable to construction engineering, bridge and road construction, precast concrete production, mine backfill, water treatment, and other fields. It can be flexibly equipped with lifting hoppers or belt conveyors according to production needs, adapting to different production line layouts.

5. Intelligent Control & Safe Operation

Equipped with an independent electric control cabinet and PLC visualization control system, it can realize full automatic control, including preset and adjustment of mixing parameters, real-time monitoring of the mixing process, and one-key operation, which reduces labor intensity and avoids operational errors. Each inspection door and observation door is equipped with an interlocking safety switch, and an emergency stop button is configured in accordance with CE regulations to ensure the safety of operators during operation. In case of power failure, the hydraulic unit with a manual pump can open the discharge door to avoid material waste.

6. Flexible Discharging & Customizable Design

According to customer needs, 1~3 discharge doors can be configured, and the discharge mode can be selected from hydraulic, pneumatic, or manual, with a special sealing device to ensure no leakage during mixing and fast, thorough discharging. We support customized services, including mixing capacity, mixing tank heating/cooling design, pressure/vacuum mixing, and overall dimensions, to fully meet the personalized needs of different customers and production scenarios.

Features of CO-NELE Planetary Concrete Mixer

1 Strong, Steady, Fast and Homogeneous Mixing Performance

2 Vertical Shaft,Planetary Mixing Motion Track

3 Compact Structure, No Slurry Leakage Problem, Economic and Durable

4 Hydraulic or Pneumatic Discharging

CMP PLANETARY CONCRETE MIXER
Item/Type	CMP50	CMP100	CMP150	MP250	MP330	MP500	MP750	MP1000	MP1500	MP2000	MP2500	MP3000
Outp capacity	50	100	150	250	330	500	750	1000	1500	2000	2500	3000
Input capacity(L)	75	150	225	375	500	750	1125	1500	2250	3000	3750	4500
Input capacity(kg)	120	240	360	600	800	1200	1800	2400	3600	4800	6000	7200
Mixing power(kw)	3	5.5	2.2	11	15	18.5	30	37	55	75	90	110
Mixing blade	1/2	1/2	1/2	1/2	1/2	1/2	1/3	2/4	2/4	3/6	3/6	3/9
Side scraper	1	1	1	1	1	1	1	1	1	1	1	1
Bottom scraper	1	1	1	1	1	1	1	1	1	2	2	2
Weight(kg)	700	1100	1300	1500	2000	2400	3900	6200	7700	9500	11000	12000

Application Scenarios

Our planetary concrete mixer is widely used in various fields that require high-quality mixing, including but not limited to:

Construction Engineering: High-rise buildings, residential quarters, industrial workshops, and other projects requiring large batches of concrete.
Road & Bridge Engineering: Highway, railway, bridge, tunnel construction, and shotcrete construction.
Precast Concrete Industry: Production of precast components, concrete pipes, concrete slabs, and other precast products.
High-Performance Concrete Production: UHPC, steel fiber concrete, colored concrete, and dry硬性 concrete production.
Other Industries: Mixing of refractory materials, glass, ceramics, fertilizers, dry mortar, foam concrete, and mine backfill materials.
