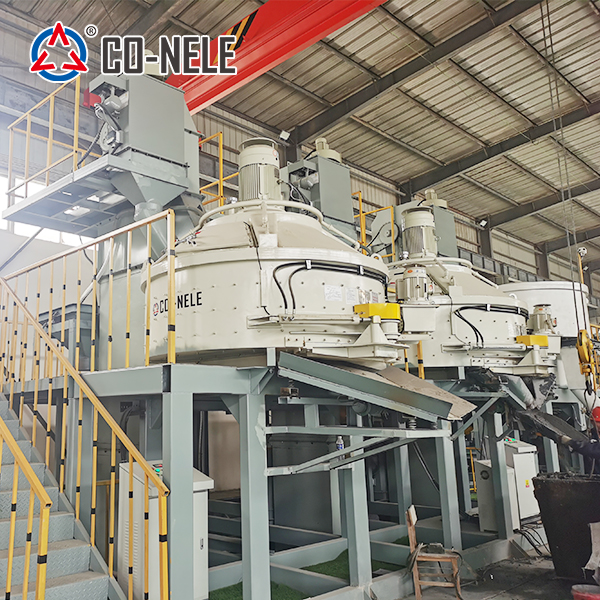

Castable mixer price,cmp500 and CR19

Castable Refractory Material Used Planetary concrete Mixer/Pan Mixer/intensive mixer

Brand: CO-NELE

Manufacture: 20 years of industry experience

Port: Qingdao

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

CO-NELE CMP planetary concrete mixer can mix all kinds of materials like high performence concrete, refractory materials,ceramics, glass and others.

The rotated direction of mixing stars is reversed with the revolution direction, and each mixing star’s direction is also different. The circulation movement and convective movement make the materisl severely mixing and achieve the uniform distribution in microcosm.

High mixing efficiency, low energy consumption.

Compared with traditional planetary mixer, the mixing time of can be reduced 15 to 20%. The no-load current and load current with same material can be 15-20 lower.

Humaniztion design, High saftey.

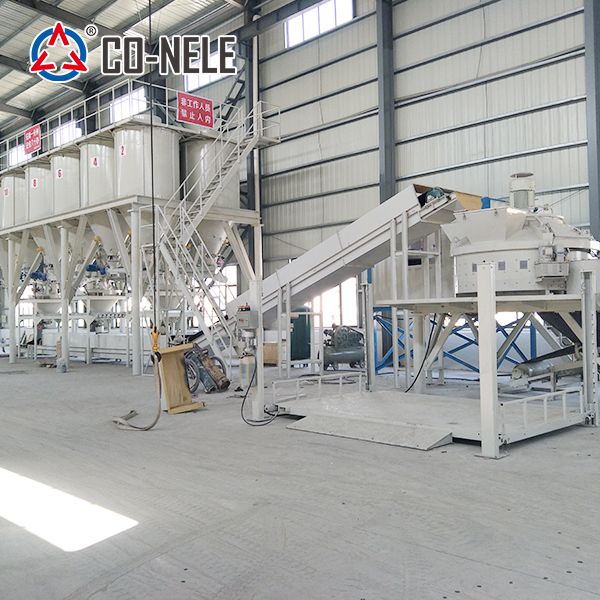

$refractory mixer machine$

Easy maintenance

Automatic greasing pump can prolong service life of gearbox and reduce the roution maintenance. Large maintenance gate and inside space is convenient for maintenance and spare parts replacement.

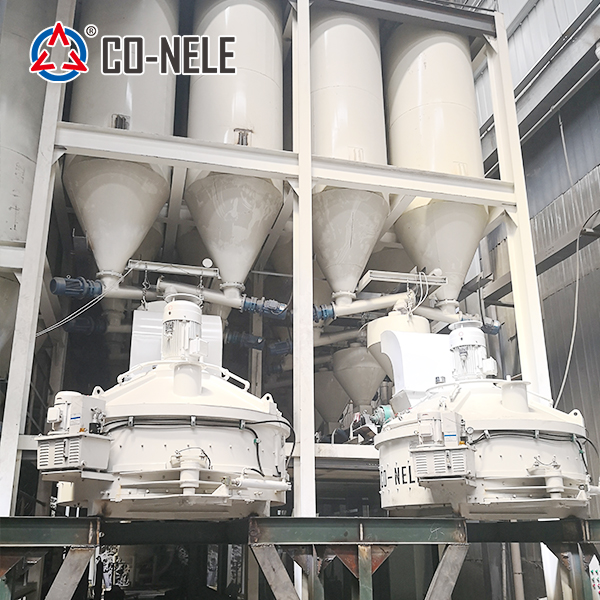

$refractory pan mixer machine$

$refractory intensive mixer$

CMP Planetary Rrefractory Mixer Specifications (Part 1)

Type	CMP50	CMP100	CMP150	CMP250	CMP330	CMP500	CMP750	CMP1000
Output capacity(L)	50	100	150	250	330	500	750	1000
Input capacity(L)	75	150	225	375	500	750	1125	1500
Output weight(Kg)	120	240	360	600	800	1200	1800	2400
Mixing power(Kw)	3	5.5	7.5	11	15	18.5	30	37
Dischar ging power(Kw)	Pneumatic discharge(optional hydraulic)
Planet/mixing arm	1/2	1/2	1/2	1/2	1/2	-	-	-
Paddle(nr)	1	1	1	1	1	1	1	1
DIscharging paddle(nr)	1	1	1	1	1	1	1	1
Weight(Kw)	700	1100	1300	1500	2000	2400	3900	6200
Ligting power(Kw)	-	2.2	2.2	3	4	4	7.5	11

CMP Planetary Refractory Mixer Specifications (Part 2)

Type	CMP1250	CMP1500	CMP2000	CMP2500	CMP3000	CMP4000	CMP4500	CMP5000
Output capacity(L)	1250	1500	2000	2500	3000	4000	4500	5000
Input capacity(L)	1875	2250	3000	3750	4500	6000	6750	7500
Output weight(Kg)	3000	3600	4800	6000	7200	9600	10800	12000
Mixing power(Kw)	45	55	75	90	110	160	200	250
Dischar ging power(Kw)	3	3	4	4	4	4	4	4
Planet/mixing arm	2/4	2/4	3/6	3/6	3/9	3/9	3/9	3/9
Paddle(nr)	1	1	1	1	1	1	1	1
DIscharging paddle(nr)	1	1	2	2	2	2	2	2
Weight(Kw)	6700	7700	9500	11000	12000	16500	17500	18500
Ligting power(Kw)	15	15	22	30	37	-	-	-
