MP100 Planetary concrete mixer

MP100 Planetary Concrete Mixer – High Efficiency & Uniform Mixing for Construction

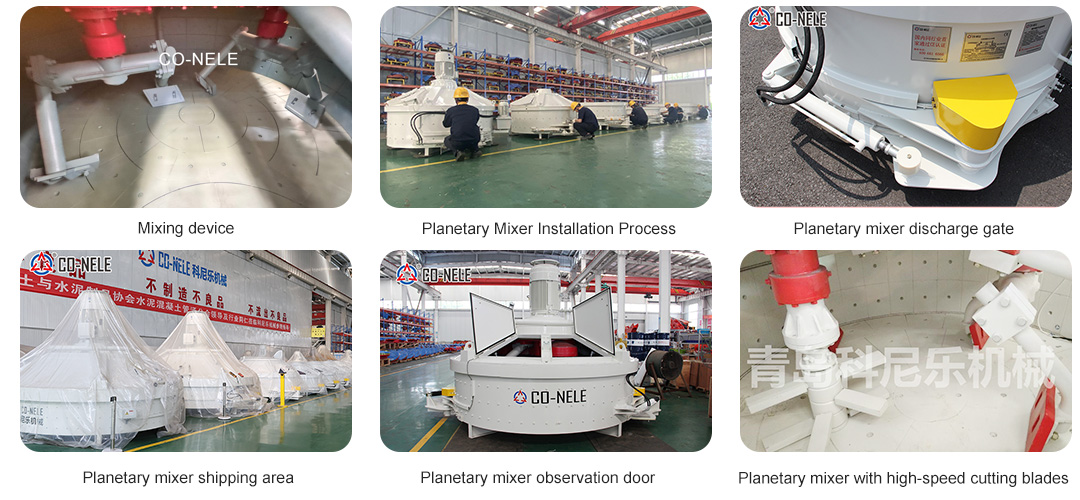

Core Advantages of MP100 Planetary Concrete Mixer

Compared with traditional concrete mixers, the MP100 planetary concrete mixer boasts unique structural and functional advantages, making it stand out in the market with superior performance and user-friendly design.

1. Advanced Planetary Mixing Technology for Uniform Mixing
Adopting professional planetary mixing principle, the MP100 mixer features mixing blades that perform both revolution and rotation simultaneously, creating a complex and intense mixing trajectory that covers the entire mixing drum without any dead corners. This innovative design ensures thorough and uniform blending of cement, sand, gravel, water, and additives, effectively avoiding material segregation and producing high-consistency concrete that meets strict engineering quality standards. The specially designed mixing blades are made of wear-resistant materials, extending service life and reducing replacement costs.
2. Robust Construction & Stable Performance
The MP100 planetary concrete mixer is built with high-strength steel and precision components, ensuring strong load-bearing capacity and long-term stable operation even under harsh construction conditions. It is equipped with a specially developed hard gear reducer, which distributes power to the mixing device efficiently, enabling low-noise operation and reliable performance. Flexible couplings and optional fluid couplers protect the drive system from overload shocks, ensuring safe startup even under full load conditions.
3. High Efficiency & Low Maintenance
With a scientific structural design, the MP100 mixer achieves high mixing efficiency while minimizing energy consumption. Its pneumatic discharge system enables fast and smooth discharging, reducing downtime and improving overall construction efficiency. The large-size access door facilitates easy maintenance and cleaning, saving labor costs and time for daily upkeep. Additionally, optional high-pressure cleaning devices and water content testers are available to further enhance operational convenience and mixing quality control.
4. Versatile Application & Customizable Options
Beyond standard concrete mixing, the MP100 planetary concrete mixer is versatile enough to mix a variety of materials, including hard, semi-hard, and plastic concrete, as well as glass, ceramics, and refractory products, expanding its application scope across multiple industries. We offer a full range of technical support and customization services, tailoring the mixer to meet special application needs of different customers, from model selection to personalized design and after-sales maintenance.

Technical Specifications of MP100 Planetary Concrete Mixer

The following technical parameters of the MP100 planetary concrete mixer are designed to meet medium-scale production needs, providing accurate reference for your equipment selection:
Item Specification
Model :MP100
Filling Volume: 150 L
Feeding Capacity: 240 kg
Compacted Concrete Volume: 100 L
Mixing Power: 5.5 kW
Mixing Star / Mixing Blade Quantity: 1 × 2
Side Scraper / Discharge Quantity :1 / 1
Discharging Power Pneumatic Discharge (Hydraulic Discharge Optional)
Weight :1100 kg

Dimensions (L x W x H):1670*1460*1450

Application Scenarios

The MP100 planetary concrete mixer is widely used in various construction and production scenarios, thanks to its versatility and stable performance. Its main application fields include:
•Small and medium-sized construction projects: Residential buildings, commercial buildings, roads, bridges, and municipal engineering.
•Precast concrete production: Manufacturing of precast concrete components, such as beams, slabs, columns, and blocks.
•Special material mixing: Mixing of glass, ceramics, refractory materials, and other non-concrete materials for industrial production.
•Other scenarios: Construction sites in remote areas, temporary mixing tasks, and small-scale production workshops.

Quality Assurance & After-Sales Service

We adhere to strict quality control standards throughout the production process of the MP100 planetary concrete mixer, from raw material selection to product assembly and testing, ensuring each mixer meets international quality standards. All products come with a one-year warranty, and we provide comprehensive after-sales services, including technical guidance, equipment installation, maintenance training, and spare parts supply.
Our professional technical team is available 24/7 to provide timely solutions to your problems, ensuring your equipment operates stably and efficiently. With a global customer base covering Pakistan, India, Qatar, and other countries and regions, we have accumulated rich experience in international cooperation and can provide localized services according to your needs.

Why Choose MP100 Planetary Concrete Mixer?

The MP100 planetary concrete mixer combines advanced technology, robust construction, and user-friendly design, offering a cost-effective solution for your mixing needs. Whether you need high-quality concrete for construction projects or a versatile mixer for special material mixing, the MP100 can meet your requirements with its superior performance and reliable quality. Choose the MP100 planetary concrete mixer to optimize your workflow, reduce costs, and enhance project efficiency.
Contact us today to learn more about the MP100 planetary concrete mixer and get a customized quotation!

laboratory test, mixing station formula test, engineering test, college mixing teaching, mobile mixing, quick repair project, etc.

Features:

◆It can evenly mix special concrete and powder with high strength and viscosity、Steel fiber concrete；

◆  Easy and convenient to operate;

◆ Economical and durable, easy to maintain, and wearable parts can be replaced;

◆Optional pneumatic or  hydraulic control discharge door to open and close, saving energy and labor;

◆ Optional motor with frequency conversion to achieve adjustable stirring speed;
