Now we have superior devices. Our solutions are exported to your USA, the UK and so on, enjoying a superb name between customers for Co Nele Planetary Mixer , Concrete Mixer Plant , Hzs35 Concrete Batching Plant , We have been sincerely looking forward to developing very good cooperative relationships with buyers from at home and abroad for creating a vibrant foreseeable future together.
Good User Reputation for Diesel Mixer - Twin shaft concrete mixer CHS – CO-NELE Machinery Detail:

Technical data

参数    型号 CHS750 CHS1000 CHS1250 CHS1500 CHS2000 CHS2500 CHS3000 CHS3500 CHS4000 CHS4500 CHS5000 CHS6000
进料容量(L) 1125 1500 1875 2250 3000 3750 4500 5250 6000 6750 7500 9000
进料重量(Kg) 1800 2400 3000 3600 4800 6000 7200 7200 9600 10800 12000 14400
公称容量(L) 750 1000 1250 1500 2000 2500 3000 3000 4000 4500 5000 6000
搅拌臂个数 2×5 2×6 2×6 2×7 2×7 2×8 2×9 2×9 2×10 2×10 2×10 2×11
电机功率(Kw) 30 37 45 55 37×2 45×2 55×2 65×2 75×2 75×2 90×2 110×2
泵站功率(Kw) 3 3 3 3 3 3 4 4 4 4 4 4
整机重量(Kg) 4500 5000 5500 6000 8400 9000 9500 9500 13000 14500 16500 19000

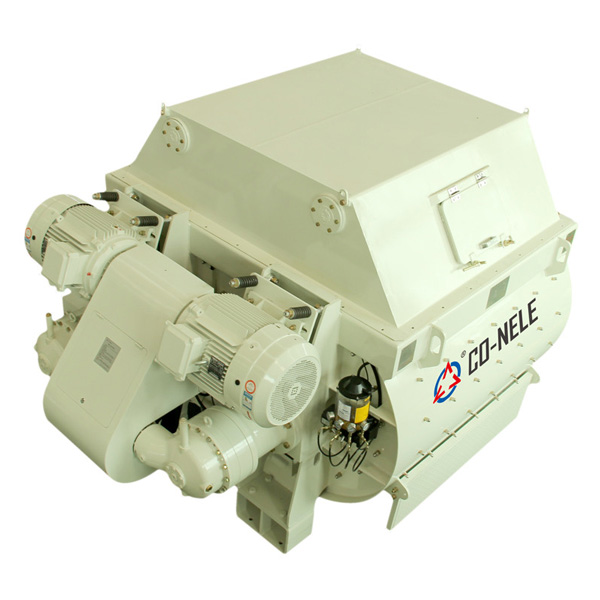

Product Introduction

CO-NELE mixer is designed compactly overall. All parts are installed in the mixing drum with small space occupation, making it easy to install and update the whole machine.

CO-NELE TWIN-SHAFT MIXER ADVANTAGES

1)The shaft end seal is equipped with a floating oil seal ring, a special labyrinth seal structure composed of a seal and a mechanical seal, which has reliable sealing, high stability and long service life;

2) automatic lubrication system configuration, four independent oil pump, high working pressure, excellent performance;

3) On-mounted motor installation layout, patented belt self-tensioning device to improve transmission efficiency, to avoid excessive wear and damage to the belt, reduce maintenance costs,The large volume ratio design concept is adopted for the helium cylinder, which can effectively improve the mixing efficiency, prolong the service life of the shaft end seal, and reduce the probability of material shaft holding;

4) Discharging door adopts eccentric double sealing design to prevent material jamming and leakage, small wear, high sealing efficiency and long-lasting;

5) Stirring device adopts a patented design with an angle of 60°. Flow line casting of the stirring arm results in uniform mixing, low resistance, and low rate of material holding shaft;

6)Configured with military-grade planetary speed reducers with smooth transmission and high load capacity;

7) Optional original Italian reducer, original German automatic lubrication pump, high pressure cleaning device, temperature and humidity testing system;

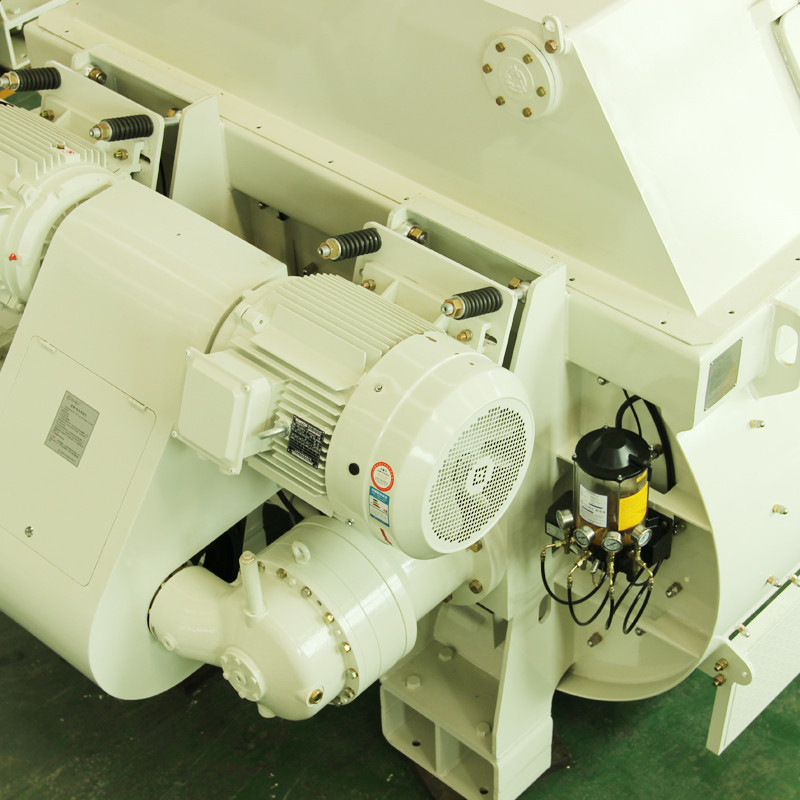

Drive device

The drive device is driven with two planet-gear speed reducers. The design features compact design, stable transmission, low noise and long service life.



 11111 Drive deviceThe drive device is driven with two planet-gear speed reducers. The design features compact design, stable transmission, low noise and long service life.
 2222 Shaft sealingDouble-layer sealing structure which consists of the floating oil seal ring, special sealing parts and mechanical seal is used. Combining with the high-pressure grease, it may not only guarantee the service life and reliability of shaft sealing, but also facilitate the dismantling and replacement.
 3333 Shaft bearingCO-NELE shaft bearing is separated from the shaft sealing. When the shaft sealing is damaged, it will not influence the normal working of the bearings. In addition, the design facilitates the dismantling and replacement of shaft sealing.
 4444 Belt self-tensioning drive device Belt self-tensioning drive device is installed in the drive device, which may maintain the stable output efficiency of the equipment for long time and avoid abnormal wear and tear of belt and reduce labor intensity of maintenance personnel.

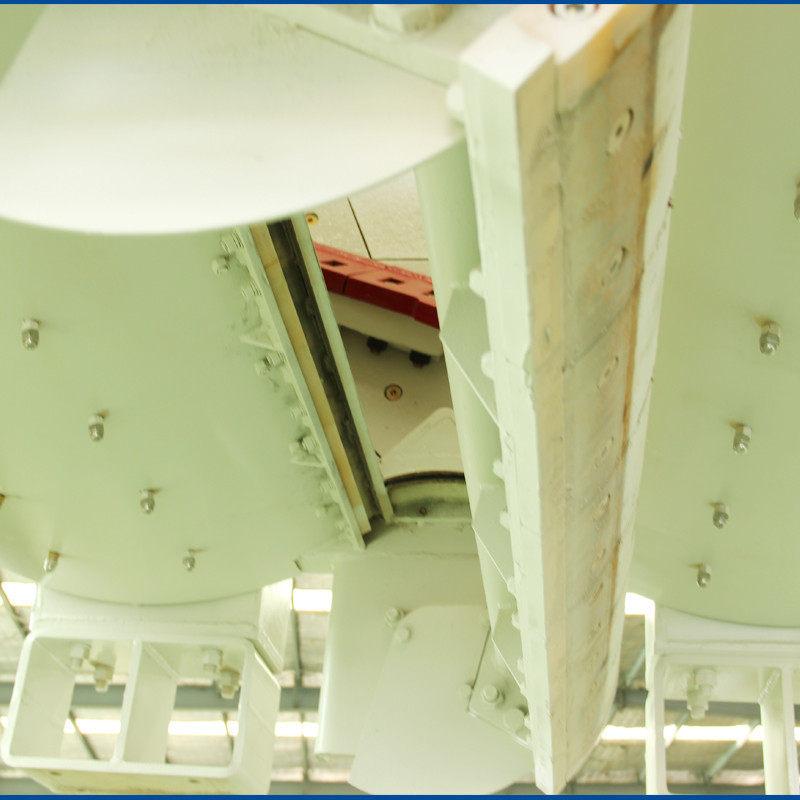

 55556666 Discharging deviceThe unloading door adopts eccentric design, double-layer sealing structure, reliable seal and less wear. In addition, the door body is equipped with a block plate, which can reduce the occurrence of material accumulation.

Mixing device

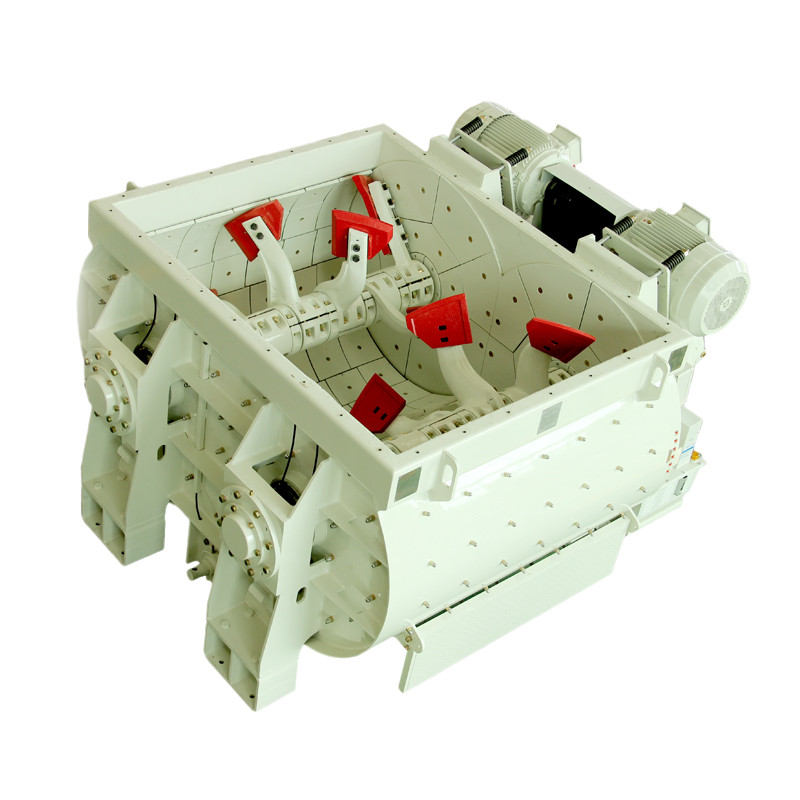

 7777 8888  Twin-shaft concrete mixerStreamline stirring arm with patent technology is designed with 60°included angle, which may not only produce radial cutting action in the mixing process, but also play the effective axial driving action, make material agitation more violent and reach material homogenization state in a short time. Because of the unique design of the mixing device, the utilization of cement is improved. At the same time, the design of 90°included angle may meet the requirements of large particle material.

Shipping photos

fahuo (3)

fahuo (1)

fahuo (2)

Our factory

wfqw (1)

wfqw (2)

Equipment application

产品应用行业4

设备应用行业照片

Exhibition

zhanhuixinxi


Product detail pictures:

Good User Reputation for Diesel Mixer - Twin shaft concrete mixer CHS – CO-NELE Machinery detail pictures

Good User Reputation for Diesel Mixer - Twin shaft concrete mixer CHS – CO-NELE Machinery detail pictures

Good User Reputation for Diesel Mixer - Twin shaft concrete mixer CHS – CO-NELE Machinery detail pictures

Good User Reputation for Diesel Mixer - Twin shaft concrete mixer CHS – CO-NELE Machinery detail pictures
