With the upgrading of power grid and infrastructure construction, the demand for C60 high-strength concrete poles is growing, requiring high-precision mixing and batching. As a professional china factory, we CO-NELE provides a complete set of cost-effective solutions (1m³ planetary concrete mixer + 60m³/h Precast Concrete Batching Plant for Concrete Pole) with competitive china factory price. This integrated CO-NELE equipment features high mixing uniformity, stable precision and efficient production, serving as a reliable choice for precast concrete component enterprises worldwide.
1. Product Overview
Our CO-NELE MP1000 planetary concrete mixer & 60m³/h Precast Concrete Batching Plant for Concrete Pole is a customized solution for C60 high-strength concrete pole production, supplied directly by our CO-NELE china factory with favorable factory price. With a designed capacity of 60m³/h, this CO-NELE 60m³/h Precast Concrete Batching Plant for Concrete Pole integrates automatic batching, mixing and discharging, stably producing high-quality C60 concrete for large-scale batch production of precast poles and prestressed components. Customized solutions and preferential prices are available from CO-NELE.
2. Core Product Configuration & Technical Advantages
The CO-NELE product adopts modular design for easy installation and maintenance. Core components are independently developed by CO-NELE, with reliable quality. Detailed configuration and advantages are as follows:

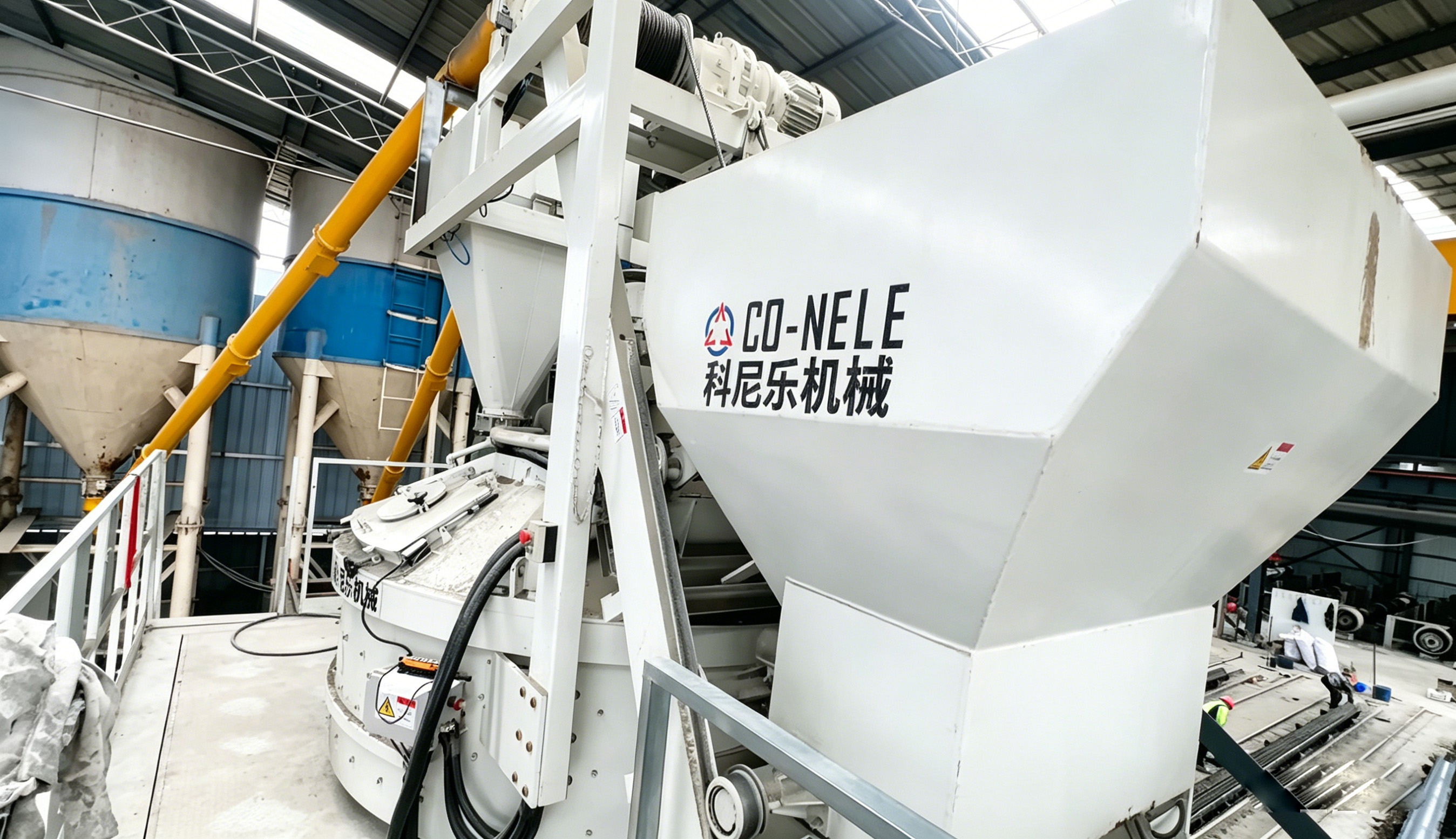

2.1 Core Component: 1m³ Planetary Concrete Mixer (Model: MP1000)
As a professional china factory, we CO-NELE produces MP1000 mixer with strict quality control and competitive china factory price. Optimized for high-strength concrete, the CO-NELE MP1000 mixer adopts advanced vertical shaft planetary mixing technology. Its parameters and advantages are as follows:
Specific Model Parameters of CO-NELE MP1000 Planetary Mixer (China Factory Direct Supply, Competitive Price):
| Parameter Item |
Specification |
| Model |
CMP1000 |
| Compacted Concrete Capacity |
1000L (1m³) |
| Feeding Volume |
1500L |
| Mixing Power |
37kW |
| Hydraulic Discharging Power |
3kW |
| Mixing Speed |
Revolution 11r/min, Rotation 26r/min |
| Number of Mixing Blades |
4 pcs |
| Number of Scrapers |
2 pcs |
| Overall Dimension (L×W×H) |
2891×2602×2217mm |
| Net Weight |
6500kg |
| Discharging Method |
Hydraulic/Pneumatic/Manual (optional) |
| Certification |
ISO 9001, CE |
CO-NELE MP1000 Key Advantages:
- ≥99% mixing uniformity, ensuring C60 concrete strength stability
- High efficiency & energy-saving (15-20% energy saving), matching 60m³/h batching plant
- Strong adaptability to dry/plastic concrete and admixtures
- Wear-resistant, humanized design with multiple discharging methods and safety protection, a core product of CO-NELE

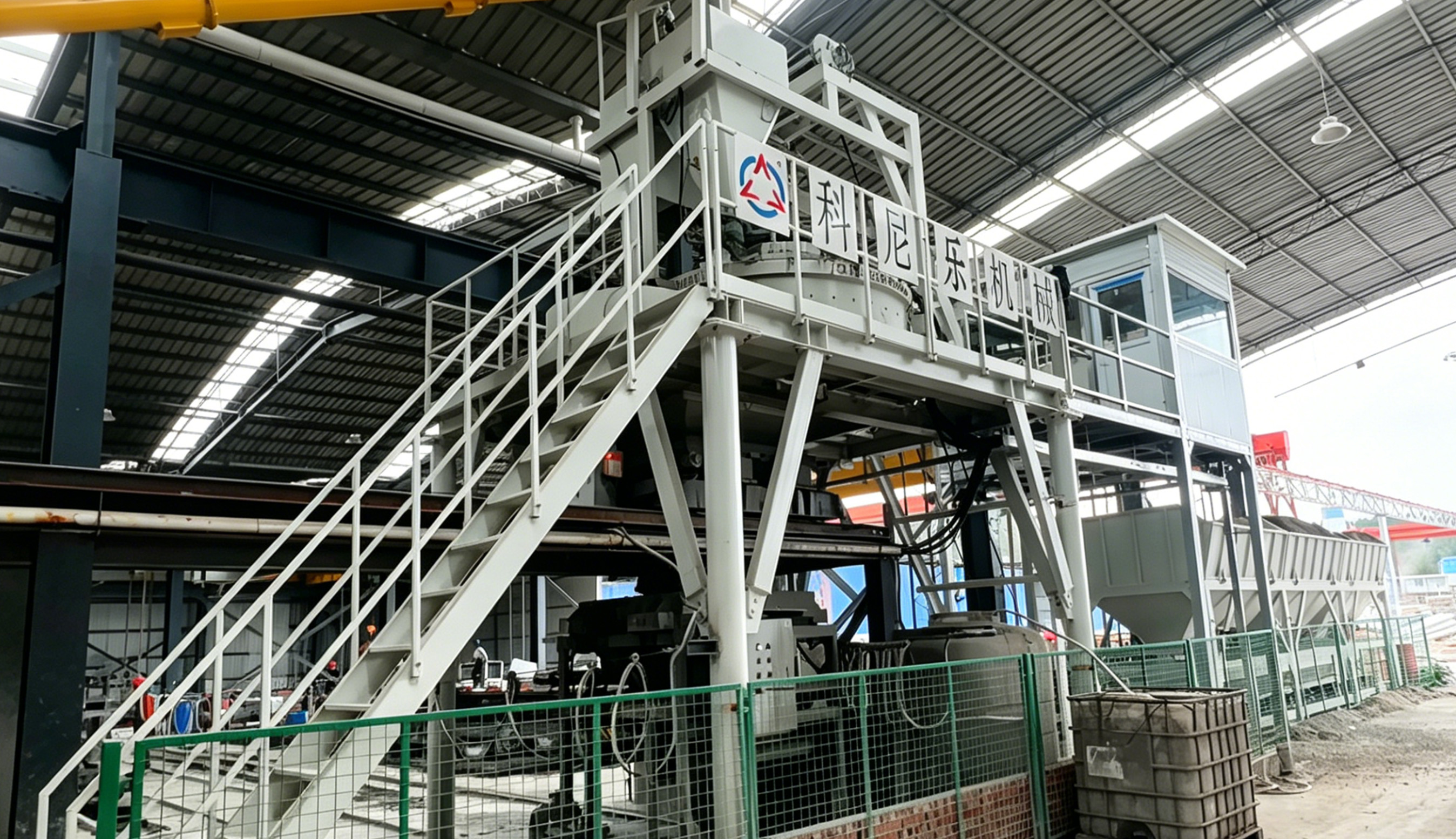

As a reliable china factory, we CO-NELE supplies the 60m³/h Precast Concrete Batching Plant for Concrete Pole (Model: HZS60) with preferential china factory price, fully matching CO-NELE MP1000 mixer. This CO-NELE 60m³/h Precast Concrete Batching Plant for Concrete Pole has compact structure for quick installation, which is specially designed by CO-NELE for concrete pole production. Its parameters and supporting systems are as follows:
Specific Model Parameters of CO-NELE 60m³/h Precast Concrete Batching Plant for Concrete Pole (China Factory Supply, Factory Direct Price):
| Parameter Item |
Specification |
| Model |
HZS60 |
| Designed Production Capacity |
60m³/h |
| Actual Continuous Production Capacity |
58-62m³/h |
| Aggregate Bin |
4 groups, 10m³ each |
| Cement Silo |
4 units, 300T each |
| Cement Weighing Hopper Capacity |
700kg |
| Additive Weighing Hopper Capacity |
20kg |
| Aggregate Weighing Precision |
≤±2% |
| Powder Weighing Precision |
≤±1% |
| Water/Additive Weighing Precision |
≤±1% |
| Discharging Height |
≥3.8m |
| Installed Capacity |
100kW |
| Control System |
PLC Touch Screen |
| Aggregate Maximum Particle Size |
≤60mm |
Core Advantages of CO-NELE MP1000:
- Mixing uniformity ≥99%, ensuring the stability of C60 concrete strength
- Energy saving of 15-20%, efficiently matching the 60m³/h batching plant
- Suitable for dry/plastic concrete and various admixtures
- Wear-resistant and durable, humanized design with multiple safety protections
CO-NELE HZS60 batching plant is directly supplied by the factory with preferential prices, perfectly matching the MP1000 mixer. It has a compact structure, no need for complex foundations, quick installation and commissioning, and greatly reduces project investment and construction period. The core supporting systems are as follows:
Full-Automatic High-Precision Batching System
4 groups of 10m³ aggregate bins, which can store and meter 4 types of aggregates at the same time; High-precision electronic weighing sensors (error ≤±1%) for accurate metering of various raw materials; Equipped with SYMC intelligent controller for adaptive learning and automatic correction to ensure stable batching precision.
Closed Powder Storage & Conveying System
4 cement silos of 300T + high-efficiency screw conveyors to realize closed conveying of powder materials, avoiding dust pollution and material waste; 700kg cement weighing hopper and 20kg additive weighing hopper meet the precise metering needs of high-strength concrete.
Intelligent Electrical Control System
PLC touch screen operation, full automation of the entire production process, reducing manual errors and labor costs; Supports parameter setting, real-time monitoring and data recording, and can seamlessly link with the planetary mixer to ensure production continuity.
III. Product Performance & Application Scenarios
3.1 Product Performance Indicators
The complete set of CO-NELE MP1000+HZ60 equipment is directly supplied by the China factory with preferential prices, excellent comprehensive performance, and meets national standards and industry requirements. The core indicators are as follows:
Concrete Quality
The produced C60 concrete has stable performance, with 28-day compressive strength ≥70MPa, slump loss ≤20mm within 30 minutes, and good workability, suitable for high-strength pole pouring.
Production Capacity
Designed capacity of 60m³/h, actual continuous capacity of 58-62m³/h, capable of mass producing 80-100 C60 high-strength concrete poles of different specifications per day.
Energy Conservation & Environmental Protection
Full-line closed design to strictly control dust pollution; Equipment noise ≤75dB, meeting environmental protection standards; Planetary mixer with intelligent speed regulation to achieve energy conservation and emission reduction.
Easy Operation & Maintenance
Stable equipment performance, low failure rate, and long service life of wearing parts; Full-automatic control reduces operators by 30% compared with traditional equipment, making operation and maintenance simple.
3.2 Application Scenarios

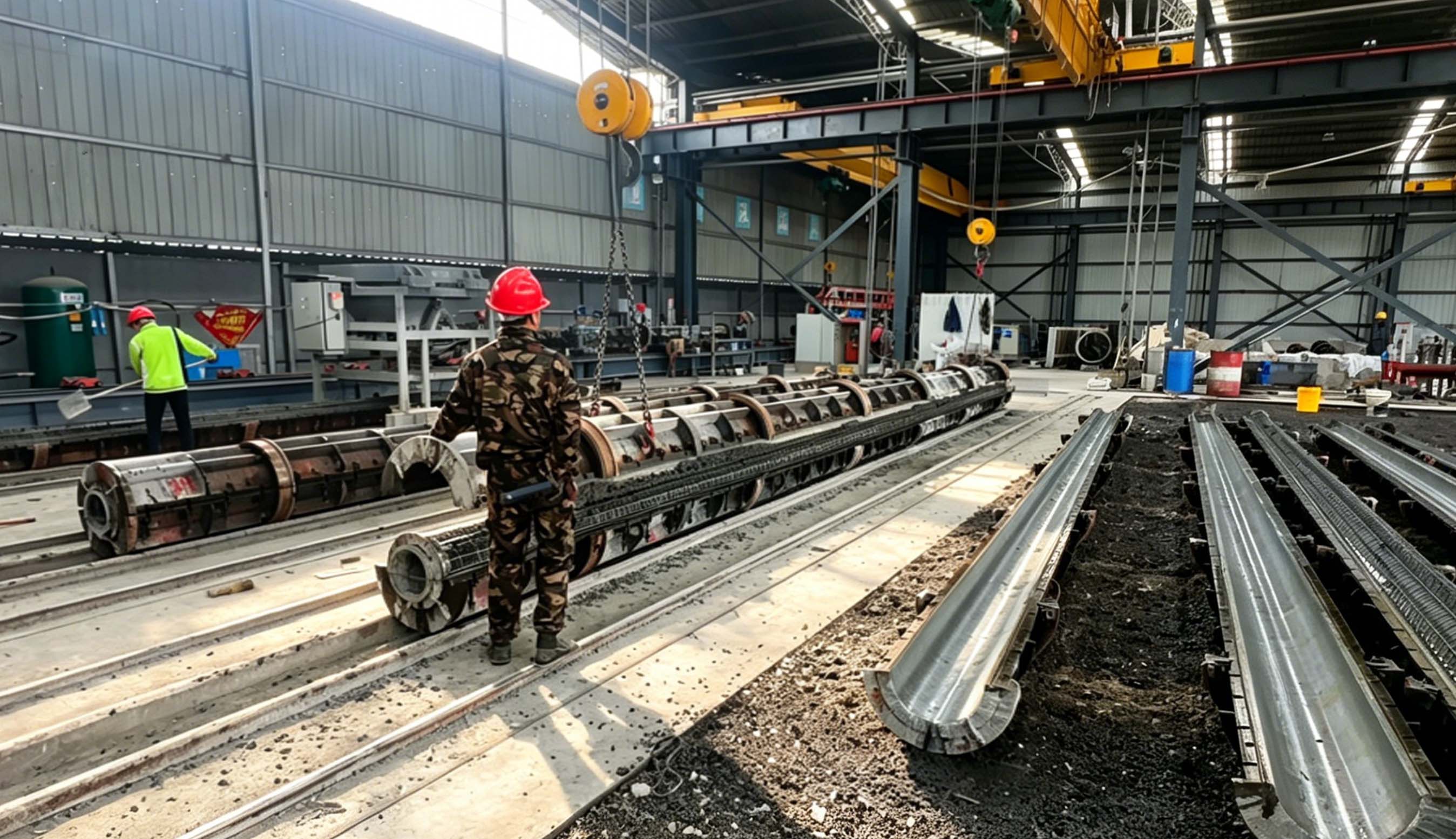

The complete set of equipment is specially designed for C60 high-strength concrete pole production, and can also be adapted to the production of other high-strength precast concrete components (prestressed beams, columns, slabs, etc.). Directly supplied by CO-NELE China factory with preferential prices, it is suitable for precast concrete component factories, power grid construction supporting enterprises, infrastructure construction enterprises, etc., to meet the high-standard production needs of various high-strength concrete projects.
IV. Product Advantages & After-Sales Service
4.1 Core Product Advantages
Compared with traditional mixing and batching equipment, the complete set of CO-NELE MP1000+HZ60 equipment has significant advantages, including direct factory supply, preferential prices, reliable quality and perfect after-sales service:
Customized Design
Tailor-made for C60 high-strength pole production, with scientific configuration and high matching between performance and production needs.
Stable Quality
Core components adopt high-quality materials and advanced technology, with reliable operation and 99.8% qualification rate of concrete products.
Efficient & Economical
High production efficiency, low energy consumption and labor costs, helping enterprises reduce costs and increase efficiency.
Easy Installation & Expansion
Modular design for quick installation and commissioning; Flexible disassembly and assembly, convenient for future production scale expansion.
4.2 After-Sales Service Guarantee
CO-NELE provides full-cycle after-sales service to ensure the stable operation of the equipment:
Professional Installation & Commissioning
Arrange a professional technical team for on-site installation, commissioning and equipment testing to ensure the equipment meets production requirements.
Technical Training
Provide systematic technical training for customer operators, including equipment operation, maintenance and daily upkeep, to ensure proficient mastery of equipment use skills.
After-Sales Warranty
Provide 1-year free warranty for the whole machine, and lifelong maintenance and spare parts supply services to eliminate worries about equipment use.
Quick Response
Establish a 24-hour after-sales service hotline, and the technical team will respond quickly to solve equipment failures in a timely manner.
The complete set of CO-NELE MP1000+HZ60 equipment is a professional integrated solution for C60 high-strength concrete pole production, integrating advanced technology, stable performance and humanized design, directly supplied by the China factory with preferential prices. We help precast concrete component enterprises improve production efficiency, ensure product quality and enhance core competitiveness, and are your reliable choice for high-strength concrete production equipment.
