The CMPS Planetary fly-cutter Concrete Mixer is a high-performance mixing device with independent intellectual property rights, specially designed for solving the problems of uneven mixing, low efficiency and high maintenance cost of powdery, granular and viscous materials such as concrete, refractory materials and ceramics. By combining planetary rotation and high-speed fly-cutter auxiliary mixing, the mixer realizes 360° dead-angle-free mixing, ensuring that materials reach high homogeneity in a short time, while effectively avoiding material agglomeration and improving product quality and production efficiency comprehensively.

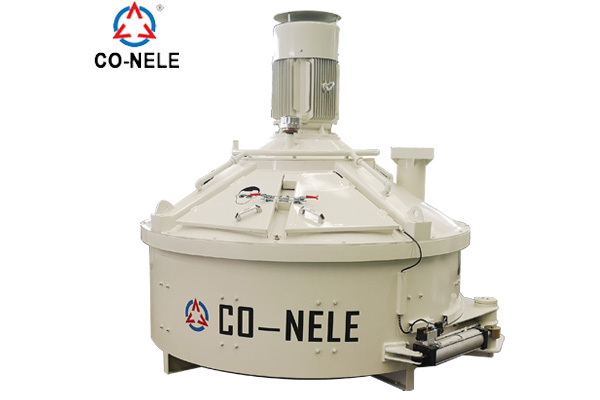

⚙️ Planetary Fly-Cutter Concrete Mixer
With compact structure, advanced transmission system and optimized lubrication design, the CMPS type mixer is suitable for both laboratory R&D and large-scale industrial production lines, and has been exported to more than 80 countries and regions around the world, winning wide recognition from industry customers.
Core Features & Technical Advantages
Advanced Planetary Fly-cutter Mixing Technology
The mixer adopts a composite motion mode of planetary revolution and self-rotation, with an infinitely non-cyclic mixing track, which ensures that the mixing blades cover the entire inner wall of the mixing drum, eliminating mixing dead angles completely. On this basis, a set of high-speed auxiliary fly-cutter device is added, which is especially suitable for mixing powdery materials, effectively preventing material agglomeration and making the mixing more uniform. The mixing blades are designed with a parallelogram structure, which can be turned 180° for reuse, greatly extending the service life of the blades and reducing the replacement cost of wearing parts.
✦ Fly-Cutter Mixing Device
Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades. Mixing blades feature a patented parallelogram structure, which can be turned 180° for reuse to increase service life. Specialized discharge scraper has been designed to increase productivity.
Planetary Fly-Cutter Concrete Mixer is an extraordinary form of planetary mixer, mainly used for high-speed mixed powder. The speed of the fast flying knife device reaches 200 rpm, and the mass of material is quickly dissipated.
|
Model
|
Output Capacity (L)
|
Input Capacity (L)
|
Output Weight (kg)
|
Mixing Power (kW)
|
Discharging Power (kW)
|
Planet/Mixing Arm
|
Weight (kg)
|
Dimension (L×W×H mm)
|
|
CMPS 50
|
50
|
75
|
120
|
3
|
Pneumatic/Hydraulic (Optional)
|
1/2
|
700
|
950×790×1200
|
|
CMPS 100
|
100
|
150
|
240
|
5.5
|
Pneumatic/Hydraulic (Optional)
|
1/2
|
1100
|
1670×1460×1450
|
|
CMPS 250
|
250
|
375
|
600
|
11
|
Pneumatic/Hydraulic (Optional)
|
1/2
|
1500
|
1860×1650×1780
|
|
CMPS 500
|
500
|
750
|
1200
|
18.5
|
Pneumatic/Hydraulic (Optional)
|
1/2
|
2400
|
2230×2080×1880
|
|
CMPS 1000
|
1000
|
1500
|
2400
|
37
|
Pneumatic/Hydraulic (Optional)
|
2/4
|
6200
|
2890×2602×2220
|
|
CMPS 2500
|
2500
|
3750
|
6000
|
90
|
Pneumatic/Hydraulic (Optional)
|
3/3
|
11000
|
Customized
|
Applicable Industries & Scenarios
The Planetary fly-cutter Concrete Mixer Type CMPS is widely used in various industries that require high-precision and uniform mixing, including but not limited to:
- Precast concrete industry (prefabricated components, concrete blocks, etc.)
- High-performance concrete (HPC) and ultra-high performance concrete (UHPC) production
- Refractory materials, ceramics and glass industry
- Chemical industry (powder mixing, granulation, etc.)
- Construction engineering (on-site mixing of dry-hard concrete, plastic concrete, etc.)
- Laboratory R&D and small-batch production
