CO-NELE Ultra-high Performance Concrete Mixer & UHPC Concrete Batching Plant Product Introduction
With the rapid development of Ultra-High Performance Concrete (UHPC) in infrastructure, prefabricated buildings and special engineering, the demand for professional mixing equipment is increasingly urgent. CO-NELE’s Ultra-high Performance Concrete Mixer (also Planetary Concrete Mixer for UHPC) and UHPC Concrete Batching Plant are tailor-made for UHPC’s low water-binder ratio, high viscosity and high fiber content. Integrating advanced mechanics, intelligent control and green concepts, they provide a full-process, high-stability solution for large-scale, high-quality UHPC production, enhancing project strength, durability and service life.

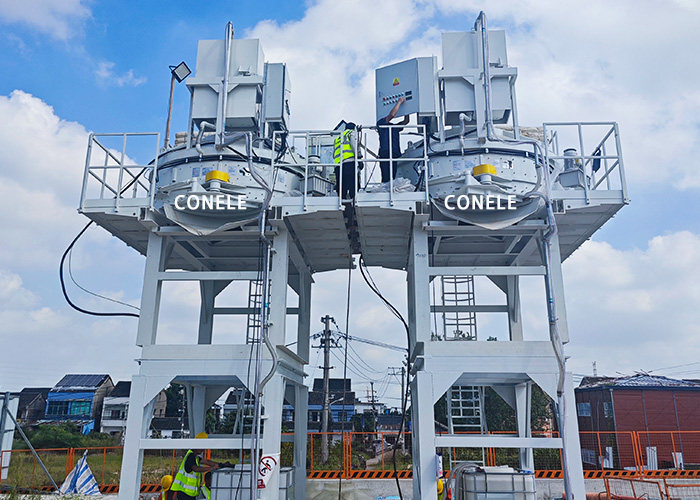

1. CO-NELE Ultra-high Performance Concrete Mixer (Planetary Concrete Mixer for UHPC): Core for Uniform UHPC Mixing
As the core of UHPC mixing, CO-NELE’s Planetary Concrete Mixer for UHPC overcomes traditional limitations (fiber agglomeration, uneven mixing, insufficient shear force). Adopting vertical shaft planetary mixing (revolution + rotation), it achieves dead-angle-free mixing, activating UHPC components’ potential for optimal performance.
1.1 Core Technical Advantages
- Excellent Mixing Uniformity: Counter-current planetary system ensures strong material circulation, dispersing ultra-fine powders and fibers evenly (≥99.8% uniformity), guaranteeing consistent batch-to-batch mechanical properties.
- Strong Material Adaptability: Optimized for UHPC’s low water-binder ratio (0.18 minimum), handles high-viscosity materials (fiber content up to 3% volume ratio) and all UHPC raw materials.
- High Efficiency & Energy Saving: 15-20% shorter mixing time and lower current than traditional mixers; stepless speed regulation (0-60 rpm) matches material characteristics, reducing energy consumption.
- Durable & Reliable: Wear-resistant/corrosion-resistant components; international brand core parts (3x longer service life); backup design prevents material waste during power outages.
- Intelligent Operation: Siemens PLC + touch screen; one-key control, optional real-time monitoring, realizing precise scientific mixing.
1.2 Core Technical Parameters
| Planetary Concrete Mixer for UHPC | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item/Type | CMP50 | CMP100 | CMP150 | MP250 | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 | MP3000 |
| Outp capacity | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input capacity(L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input capacity(kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Mixing power(kw) | 3 | 5.5 | 2.2 | 11 | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Mixing blade | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/3 | 2/4 | 2/4 | 3/6 | 3/6 | 3/9 |
| Side scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1100 | 1300 | 1500 | 2000 | 2400 | 3900 | 6200 | 7700 | 9500 | 11000 | 12000 |
1.3 Application Scenarios
Widely used in small-medium UHPC scenarios (laboratory R&D, small-batch prefabrication, reinforcement, tunnel shotcrete, 3D printing). Also serves as the core of UHPC batching plants for integrated production.

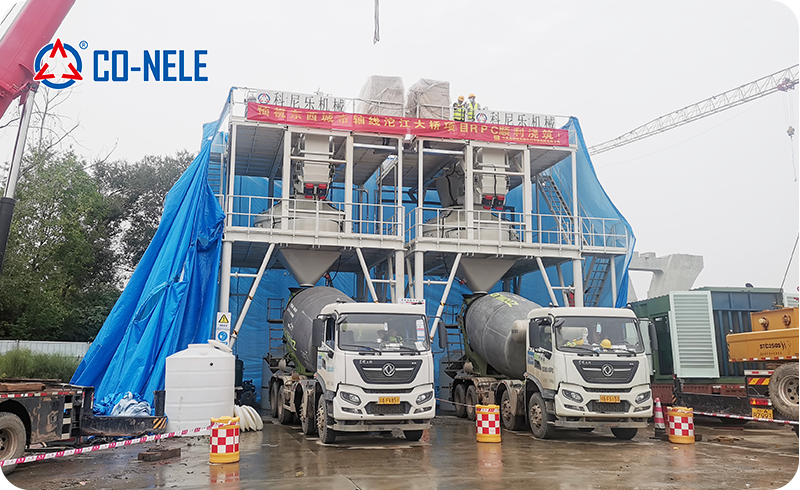

2. CO-NELE UHPC Concrete Batching Plant: Integrated Solution with Planetary Concrete Mixer for UHPC
CO-NELE’s UHPC Batching Plant integrates storage, precise metering, automatic feeding, mixing and discharging. It solves traditional UHPC production pain points (poor quality control, low efficiency, high labor) and is core equipment for commercial UHPC, large infrastructure and prefabrication factories.
2.1 Core Technical Advantages
- Integrated Intelligent Control: PLC central control; ±0.5% metering accuracy; data recording/traceability for quality management.
- Perfect UHPC Mixing Match: Equipped with CO-NELE Planetary Concrete Mixer for UHPC; optional vacuum degassing (≤0.5% bubbles) enhances UHPC performance.
- Flexible Configuration: Continuous/batch mixing modes; modular design for quick installation, movement and customization.
- Green & Eco-friendly: Closed design + dust recovery (≤10 mg/m³); noise reduction and automatic cleaning for low-carbon production.
- Stable & Efficient: Rigid frame; 24-hour continuous operation; 5-50 m³/h capacity for various project scales.
