A planetary concrete mixer (also called vertical-shaft planetary pan mixer) is a high-precision, forced-action concrete mixing machine defined by its unique dual rotational motion of mixing blades. As a leading manufacturer in mixing equipment, CO-NELE has optimized this mixer type based on advanced German technology, making it the premium choice for ultra-uniform, high-performance concrete and specialty materials across global industries.
Core Definition & Working Principle
It is a vertical-shaft forced mixer with a fixed circular mixing pan (stationary bowl). Its signature planetary motion—revolution plus rotation—is perfectly optimized by CO-NELE to achieve exceptional mixing results:
Revolution
Multiple mixing arms/blades orbit around the central vertical main shaft (like planets circling the sun), a design enhanced by CO-NELE’s patented gear drive system.
Rotation
At the same time, each blade spins rapidly on its own independent axis, ensuring thorough material blending.
This combined revolution + rotation creates complex 3D material flow: continuous shearing, folding, overturning, and full spatial coverage inside the pan. CO-NELE’s planetary concrete mixer completely eliminates mixing dead zones, aggregate segregation, and powder agglomeration inside the tank—thanks to its reinforced wall scrapers that continuously scrape material off pan walls and feed it back into the active mixing zone, a key feature of CO-NELE’s design.
Key Structural Components (CO-NELE Advantage)
CO-NELE’s planetary concrete mixer integrates high-quality components and patented technologies to ensure stability and durability:
Fixed Mixing Pan
Stationary round bowl, usually lined with wear-resistant alloy liners customized by CO-NELE to extend service life.
Central Vertical Drive Shaft
Supported by CO-NELE’s heavy-duty bearing system for stable operation.
Planetary Gear Drive System
CO-NELE’s patented hard-tooth surface reducer delivers independent revolution & rotation speed, ensuring low noise, high torque, and long service life.
Mixing Arms & Blades (2–4 sets)
CO-NELE’s high-wear resistant alloy blades with optimized parallelogram design (patented) can be flipped 180° for repeated use, doubling utilization rate.
Wall Scrapers
CO-NELE’s reinforced scrapers eliminate mixing dead zones and prevent material buildup.
Bottom Discharge Gate
Pneumatic/hydraulic quick unloading (1–3 outlets optional) with special sealing device to avoid leakage, designed for environmental protection and efficiency.
Motor & Heavy-Duty Reducer
CO-NELE’s customized motor and reducer ensure stable high-torque power transmission, adapting to various working conditions.
Main Advantages (CO-NELE’s Core Strengths)
CO-NELE’splanetary concrete mixer achieves best-in-class particle-level uniformity, ideal for dispersing cement paste, fine powder (silica fume), fibers, pigments, and admixtures. With over 100 independent patents, CO-NELE’s mixing technology minimizes concrete segregation and ensures consistent batch quality.
CO-NELE’s mixer handles all concrete grades: plastic, dry-hard, high-viscosity mortar, UHPC (Ultra-High Performance Concrete), fiber-reinforced concrete, refractory castables, colored concrete, and precast concrete mixes. It is widely used in lithium batteries, magnetic materials, ceramics, and other industries, showcasing its versatility.
CO-NELE’s optimized planetary motion ensures full-pan trajectory coverage, with mixing blades covering the entire tank bottom every cycle—solving the industry pain point of uneven mixing in traditional equipment.
Fast homogeneous blending (typically 3–5 minutes per batch) with low batch-to-batch variation, improving production efficiency for CO-NELE users worldwide.
CO-NELE’s vertical structure saves space; modular parts and large-size inspection doors (with safety switches) make inspection, blade replacement, and cleaning convenient, reducing maintenance costs for users.
Limitations
Like all planetary mixers, CO-NELE’s model has lower large-batch throughput compared to twin-shaft horizontal mixers; it is not ideal for large-scale commercial ready-mix concrete stations. However, its superior mixing quality makes it the first choice for high-end production scenarios. Additionally, its initial equipment cost and relative power consumption are higher, but the long-term durability and efficiency offset these costs.
Typical Applications (CO-NELE’s Global Cases)
CO-NELE’s planetary concrete mixer is the industry standard for quality-critical production, with over 10,000 customer cases in more than 80 countries worldwide. Key applications include:
- Precast concrete components (precast walls, pipes, blocks, PC components)—CO-NELE has provided automatic intelligent PC wall panel production lines for Saudi precast factories and concrete pipe mixing stations for Vietnamese customers.
- UHPC / HPC high-performance concrete—CO-NELE serves major clients like Shanghai Electric Yantong, Guangxi Road & Bridge, and China Communications Construction, providing reliable mixing solutions for UHPC applications.
- Steel fiber & synthetic fiber-reinforced concrete
- Colored concrete, decorative concrete, repair mortar
- Refractory materials—80% of China’s top 100 refractory enterprises choose CO-NELE’s planetary mixers, and it cooperates with global giants like RHI Magnesita and Vesuvius.
Comparison vs. Common Mixers (CO-NELE’s Position)
| Type | Mixing Motion | Homogeneity | Best Use Case | CO-NELE Advantage |
|---|---|---|---|---|
| CO-NELE Planetary Concrete Mixer | Revolution + Rotation (planetary, patented by CO-NELE) | Excellent (no dead zones) | High-end precast, UHPC, specialty concrete, refractory materials | German technology, patented components, global after-sales, 26+ years of industry experience |
| Drum mixer (tilting) | Simple tumbling | Average | General on-site low-grade concrete | — |
| Twin-shaft horizontal mixer | Horizontal forced stirring | Good | Large-volume commercial ready-mix concrete | — |

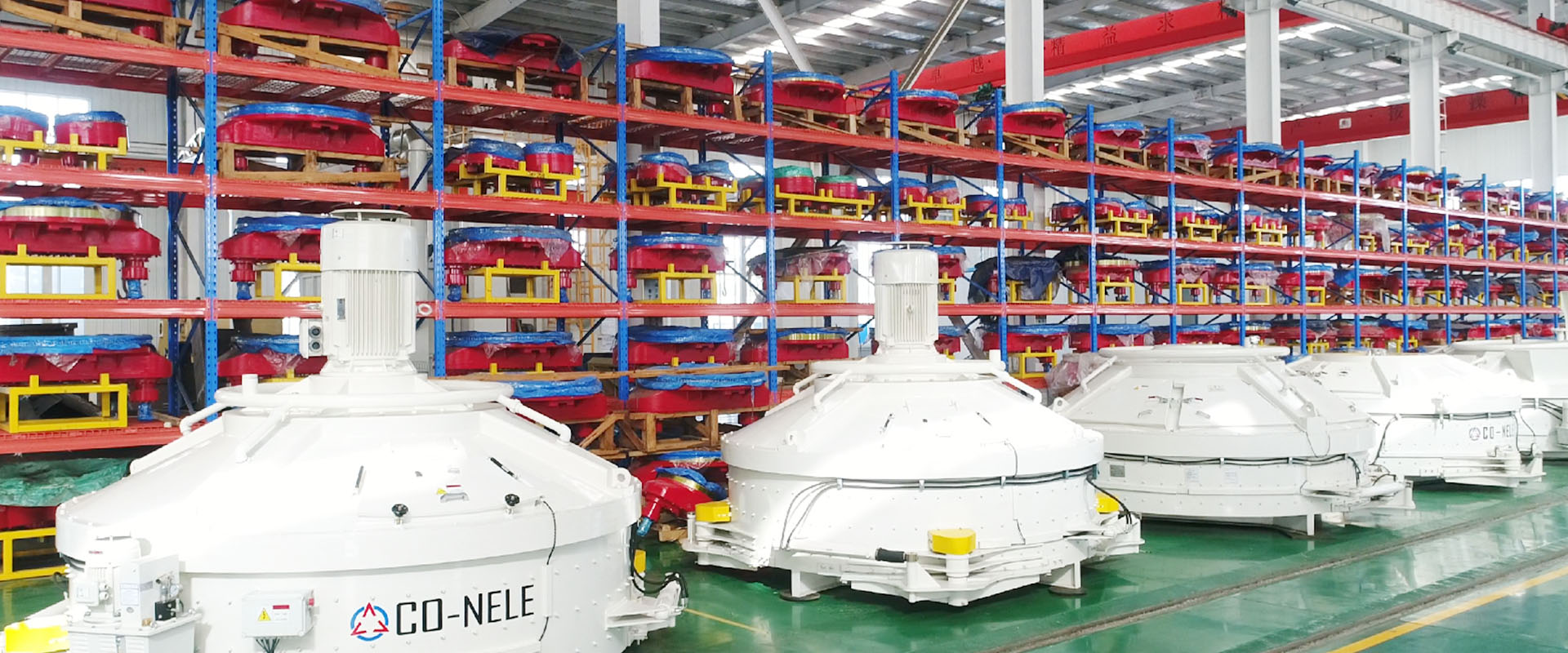

With 30,000㎡ workshop, a professional R&D team of 300 people, and ISO 9001 & CE certification, CO-NELE has become a leader in planetary concrete mixer manufacturing, providing one-stop mixing solutions for global high-end users.
