CO-NELE Launches CMP1000 Planetary Concrete Mixer, Empowering 60m³/h Precast Concrete Batching Plant
Recently, the well-known equipment manufacturer CO-NELE officially launched its new CMP1000 Planetary Concrete Mixer, a 1000 Liters Concrete mixer specially designed for Concrete Cement Pipe batching plant. As a core equipment of the 60m³/h precast concrete batching plant, this 1000L (1 cubic meter) planetary concrete mixer integrates advanced planetary mixing technology, stable performance and high efficiency, which is expected to break through the bottleneck of traditional mixing equipment in cement pipe production, optimize the production process of Concrete Cement Pipe batching plant, and inject new vitality into the development of the precast concrete pipe industry worldwide.

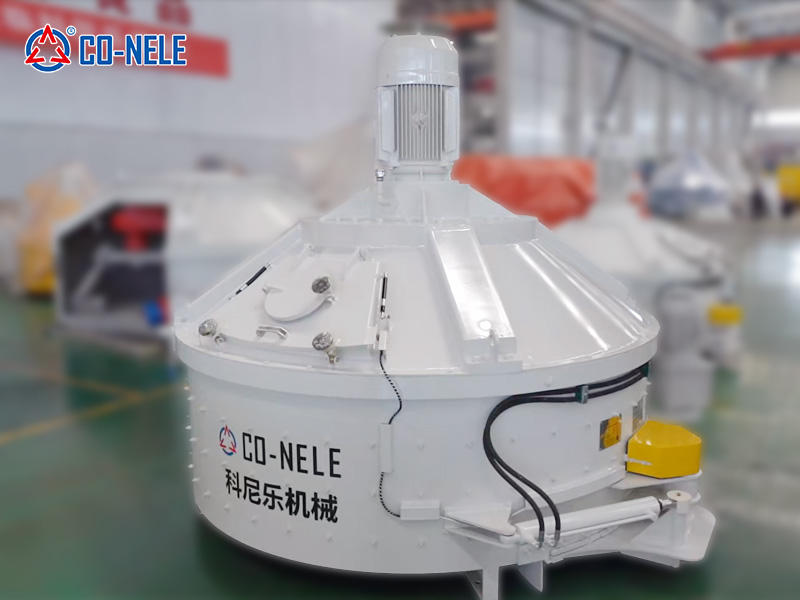

Core Advantages: Interpreting the Strength of CO-NELE CMP1000 Planetary Concrete Mixer
As a key equipment in the production of concrete cement pipes and a core component of the Concrete Cement Pipe batching plant, the mixing effect directly determines the strength, compactness and durability of the finished pipe. The newly launched CO-NELE CMP1000 Planetary Concrete Mixer, a high-performance 1000 Liters Concrete mixer, has obvious advantages compared with traditional mixing equipment, and has been highly recognized by industry insiders in the trial stage.
1. High-Efficiency Mixing, Matching the Rhythm of Large-Scale Production
The CO-NELE CMP1000 Planetary Concrete Mixer adopts the core planetary mixing principle, which realizes the dual motion mode of “revolution + rotation” of the mixing blades—while the mixing arm revolves around the center of the mixing tank, each blade rotates at high speed around its own axis. This unique motion trajectory enables the concrete materials to be fully sheared, kneaded and turned in the tank, eliminating mixing dead angles and ensuring that the cement, sand, aggregate and additives are mixed uniformly in a short time. With a production rate of 60m³/h, this 1000 Liters Concrete mixer can perfectly match the continuous production rhythm of large-scale 60m³/h precast concrete batching plant and Concrete Cement Pipe batching plant, effectively reducing the waiting time of subsequent processes and improving the overall production efficiency.
2. Targeted Design, Adapting to the Demand of Cement Pipe Production
Compared with ordinary concrete mixing equipment, the CO-NELE CMP1000 Planetary Concrete Mixer, a professional 1000 Liters Concrete mixer, is specially optimized for the characteristics of concrete used in cement pipes and the operation needs of Concrete Cement Pipe batching plant. The 1000L (1 cubic meter) effective mixing volume is designed to match the standard specification requirements of cement pipe pouring, avoiding material waste caused by excessive mixing or insufficient supply. At the same time, the equipment is equipped with a special bottom scraper and side scraper, which can effectively clean the material attached to the inner wall and bottom of the mixing tank, ensuring the purity of each batch of concrete and further improving the quality stability of cement pipes produced by the 60m³/h precast concrete batching plant.
3. Stable and Durable, Reducing Long-Term Operation Costs
The main body of the CO-NELE CMP1000 Planetary Concrete Mixer adopts high-strength steel plate welding, and the mixing blades and liners are made of wear-resistant materials such as Ni-hard cast iron, which greatly improves the service life of the equipment under long-term high-intensity operation in the 60m³/h precast concrete batching plant. As a high-quality 1000 Liters Concrete mixer, it is equipped with an advanced transmission system and a hydraulic discharge device, which has the characteristics of low noise, stable operation and easy maintenance. CO-NELE provides a one-year after-sales warranty and online technical support for this equipment, which further reduces the operation and maintenance costs of enterprises using Concrete Cement Pipe batching plant.
Detailed Parameters: Comprehensive Interpretation of CO-NELE CMP1000 Planetary Concrete Mixer Performance
The excellent performance of the CO-NELE CMP1000 Planetary Concrete Mixer, a core 1000 Liters Concrete mixer for Concrete Cement Pipe batching plant, is supported by its sophisticated technical parameters. The following table details the core parameters of the equipment, providing a clear reference for enterprises to choose and use in 60m³/h precast concrete batching plant:
| Parameter Name | Specification/Value |
|---|---|
| Effective Mixing Volume | 1000L (1 cubic meter) |
| Production Rate | 60m³/h |
| Mixing Power | 37kW |
| Feeding Capacity | 1500L |
| Feeding Weight | 2400kg |
| Discharging Power | 3kW (pneumatic discharge, hydraulic discharge optional) |
| Mixing Blades | 2×2 (Ni-hard cast iron, wear-resistant) |
| Scraper Configuration | 1 side scraper, 1 bottom scraper |
| Overall Weight | About 6200kg |
| Certification | CE, ISO 9001 |
| Application | Specialized in Concrete Cement Pipe batching plant; also applicable to 60m³/h precast concrete batching plant, precast concrete components, refractory materials, etc. |

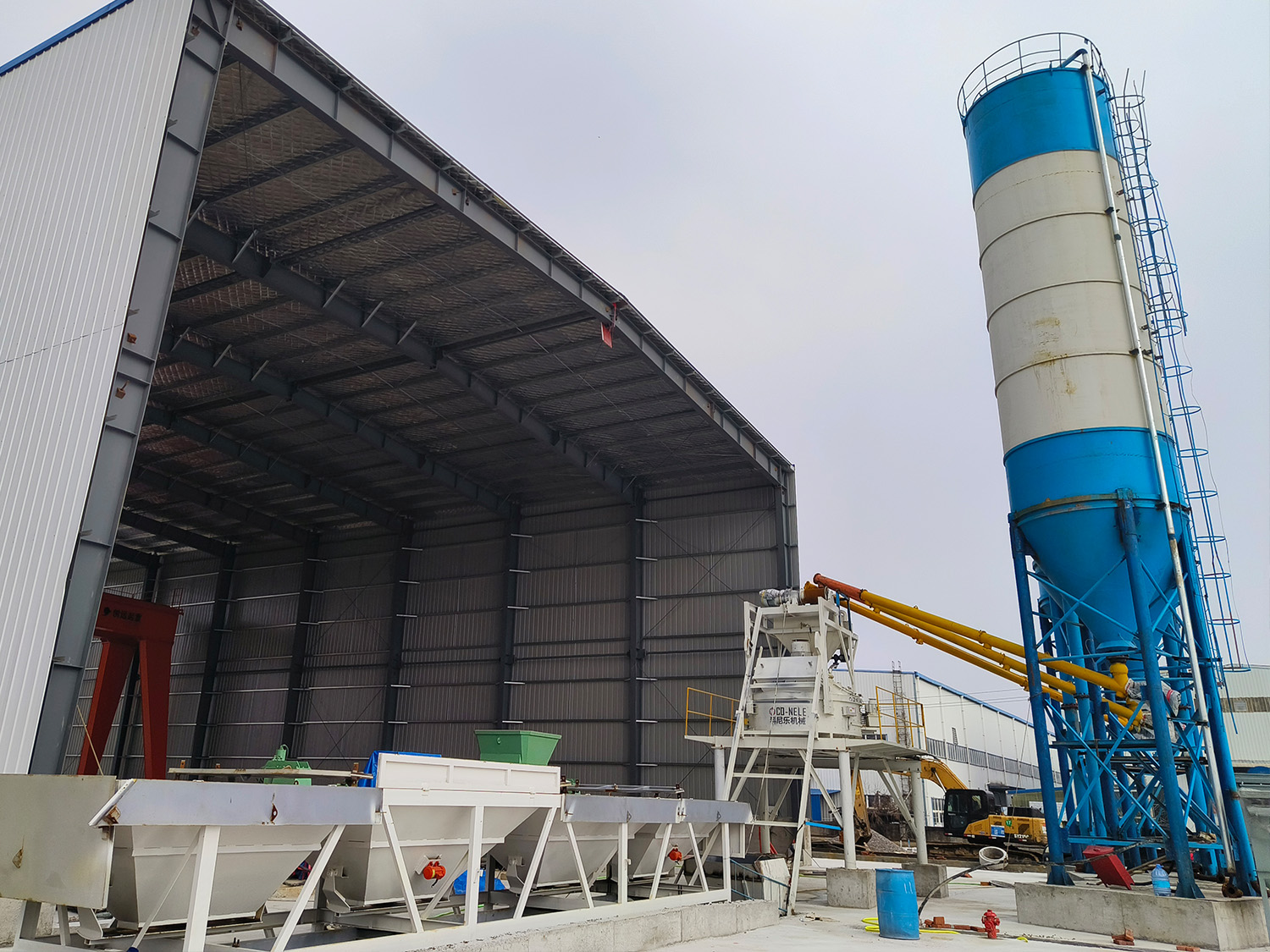

60m³/h Precast Concrete Batching Plant Parameters
| Parameter Name | Specification/Value |
|---|---|
| Production Capacity | 60m³/h |
| Total Power | 75kW |
| Aggregate Storage Capacity | 4×10m³ |
| Cement Silo Capacity | 100t (optional 50t/200t) |
| Water Tank Capacity | 3m³ |
| Batching Accuracy | Aggregate: |
Industry Significance: Helping the High-Quality Development of Cement Pipe Industry
With the rapid development of global infrastructure construction, the demand for high-quality concrete cement pipes in municipal engineering, water conservancy projects, highway and bridge construction is increasing day by day, and higher requirements are put forward for the production efficiency and product quality of Concrete Cement Pipe batching plant and 60m³/h precast concrete batching plant. The launch of the CO-NELE CMP1000 Planetary Concrete Mixer, a high-efficiency 1000 Liters Concrete mixer, fills the gap of high-efficiency and targeted mixing equipment in the cement pipe production field, and its 60m³/h high production rate and uniform mixing effect can effectively help enterprises reduce production costs and improve product qualification rate of the 60m³/h precast concrete batching plant.
Industry experts said that the CO-NELE CMP1000 Planetary Concrete Mixer, a professional 1000 Liters Concrete mixer, adopts advanced German technology and combines the actual needs of Concrete Cement Pipe batching plant production, which not only improves the production efficiency of enterprises using 60m³/h precast concrete batching plant, but also promotes the upgrading of the entire precast concrete pipe industry. In the future, with the popularization and application of this CO-NELE equipment, it will further promote the transformation and upgrading of the cement pipe production industry, help the construction of green and efficient 60m³/h precast concrete batching plant and Concrete Cement Pipe batching plant production lines, and make positive contributions to the high-quality development of infrastructure construction.
Post time: Mar-14-2026
